Removing And Installing FOOTWELL Light

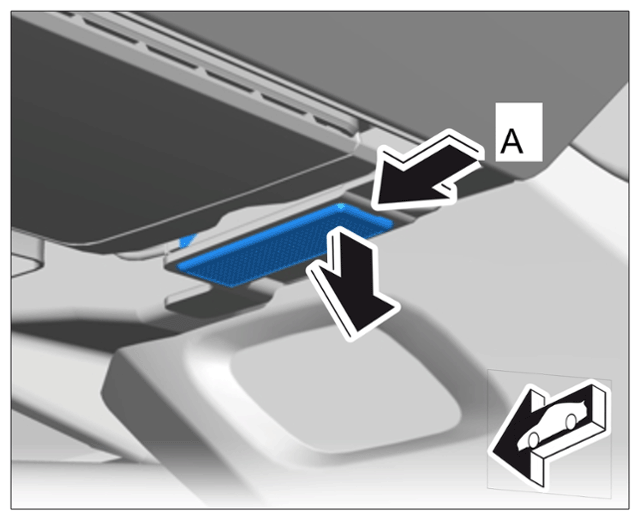

  1. Carefully press the footwell light out of the trim panel at the cut-out -A-  using a suitable tool.
    G16225911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping footwell light

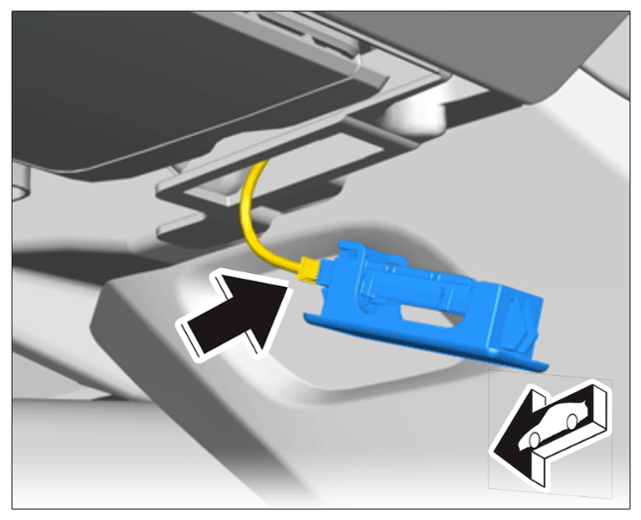

  2. Disconnect electric plug connection -arrow-  for footwell light.
    G16225912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Installation is performed in reverse order.
