Removing And Installing Cup Holder

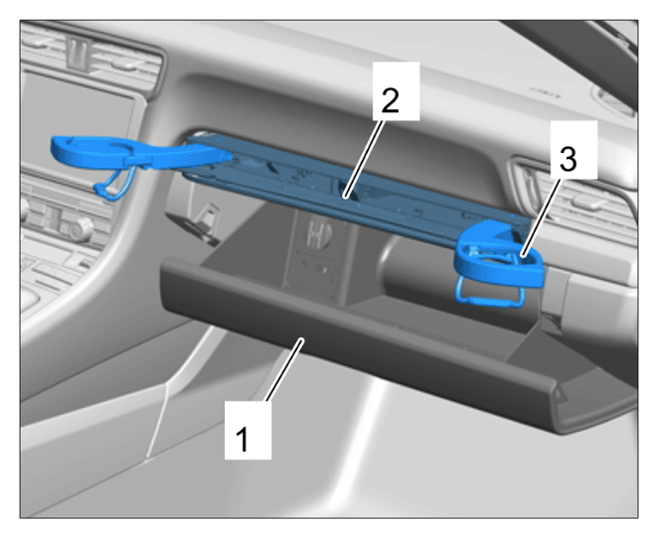

  1. Pull out drinks slots -3-  .
    G16223957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out drinks slots (shown on the 991)

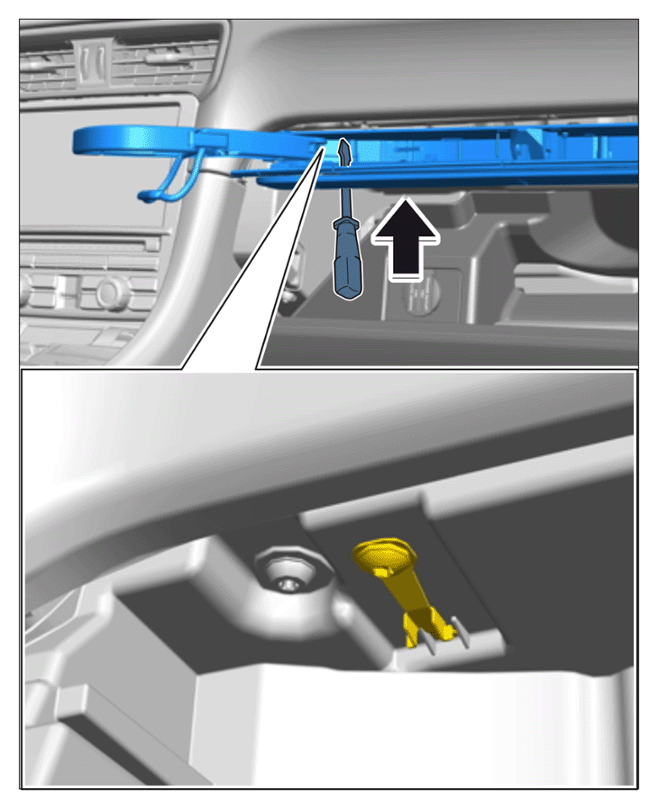

  2. Release retaining clips at the left and right -arrow-  .
    G16223958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing cupholder (shown on the 991)

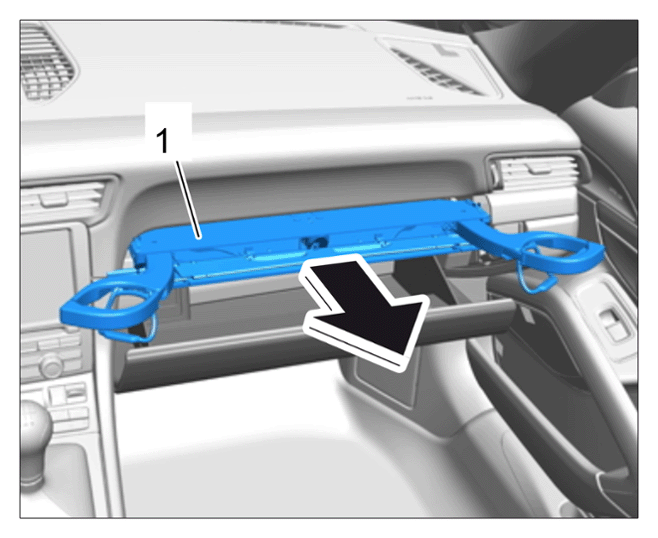

  3. Remove cupholder -1-  .
    G16223959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cupholder (shown on the 991)

  4. Installation is performed in reverse order.
