Removing And Installing Front Ashtray

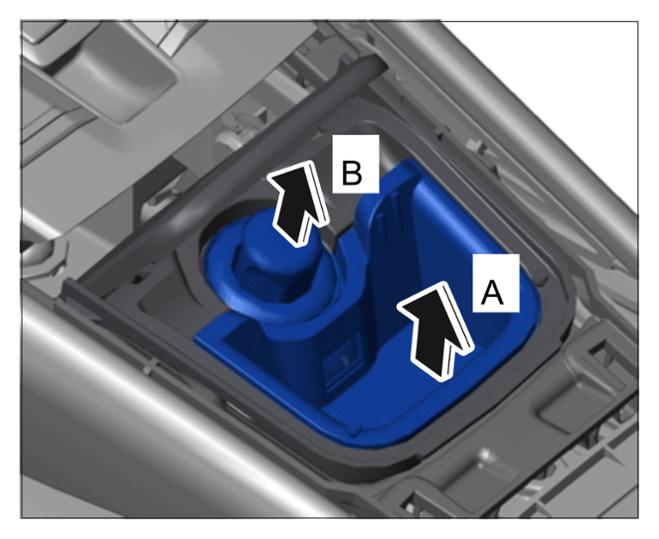

  1. Open ashtray cover.
  2. Remove ashtray insert -arrow A-  .
  3. Remove cigarette lighter insert -arrow B-  .
    G16223938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing ashtray and cigarette lighter insert

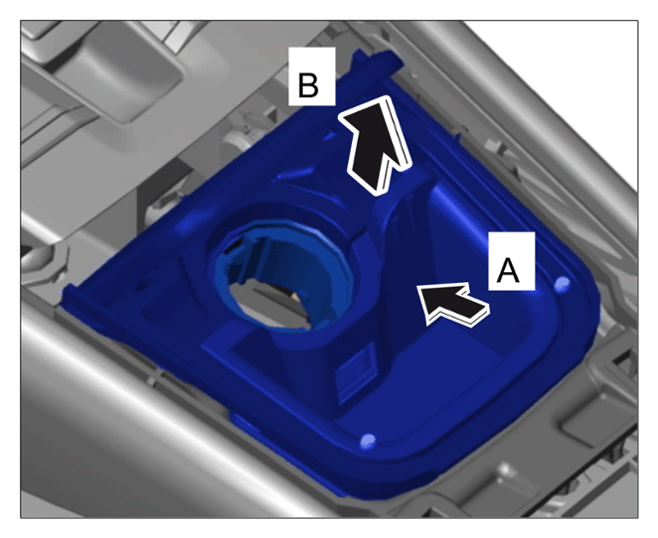

  4. Unclip ashtray by pulling it forward -arrow A-  and pull it up to remove it -arrow B-  .
    G16223939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing ashtray

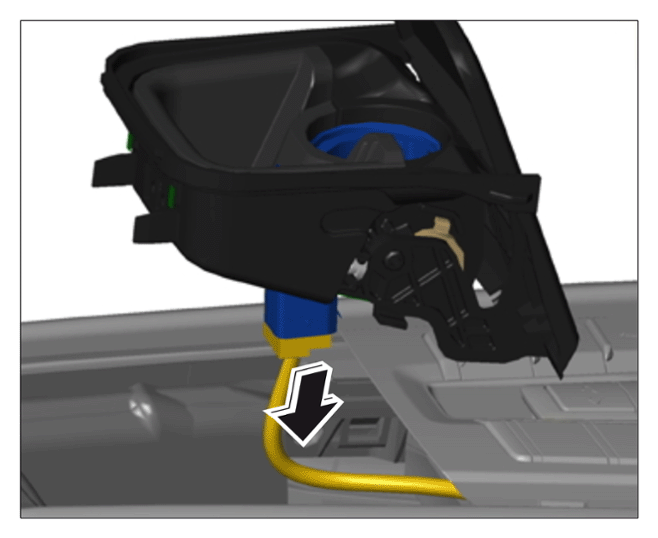

  5. Disconnect electric plug connection for cigarette lighter -arrow-  .
    G16223940Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off electric plug connection

  6. Installation is performed in reverse order.
