Disassembling And Assembling Centre Console

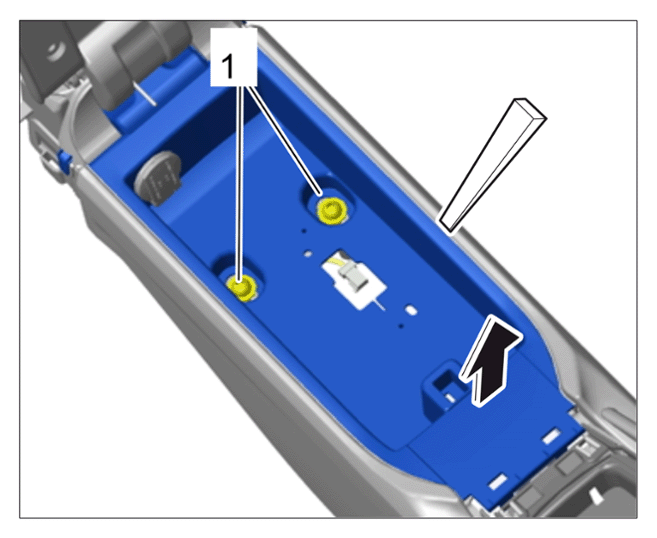

Unclip front storage compartment and lift it up out of the centre console -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear oddments tray

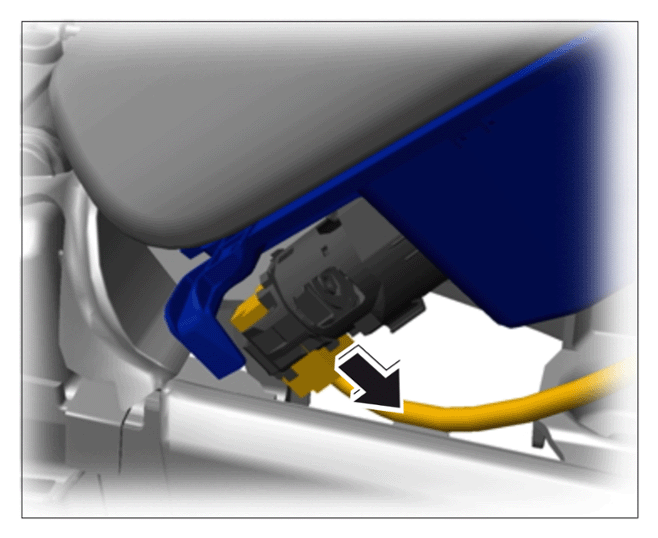

Disconnect electric plug connection from plug socket -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off electric plug connection
Remove interior surveillance sensor.
> REMOVING AND INSTALLING INTERIOR MONITORING SENSOR
Remove wire harness for centre console.
> 972019 REMOVING AND INSTALLING WIRE HARNESS FOR CENTRE CONSOLE

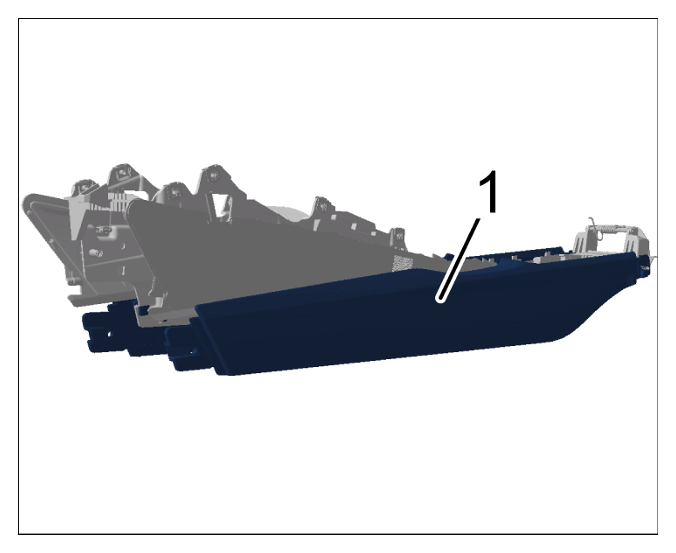

Unclip and remove left and right outer side trim panel -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing outer side trim panel

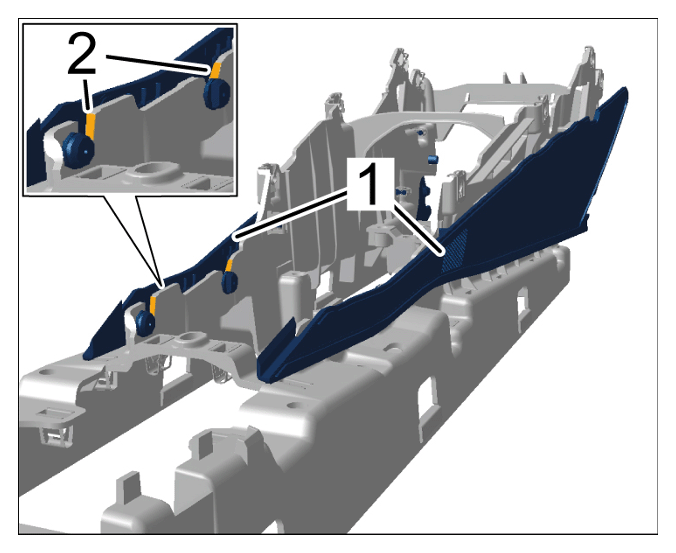

Unclip link and right inner side trim panel -1- at the front, lift up and remove from the guides -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner side trim panel
Installation is performed in reverse order.
