Removing And Installing Centre Console Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

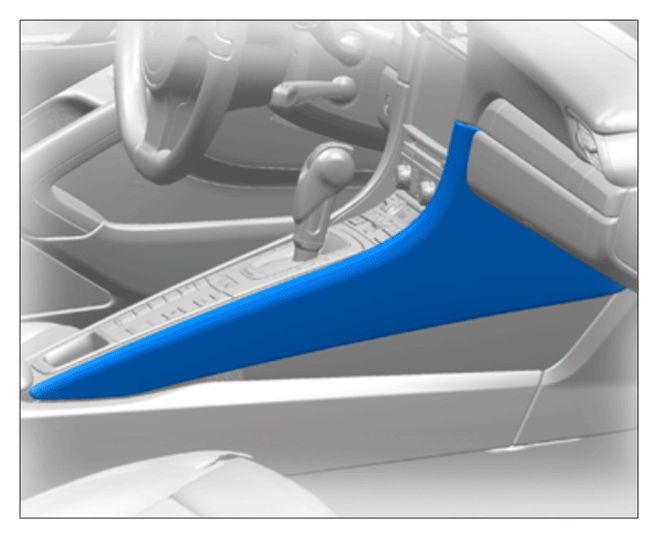

Installation position of centre console trim

1. Unclip side trim panel to the side -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

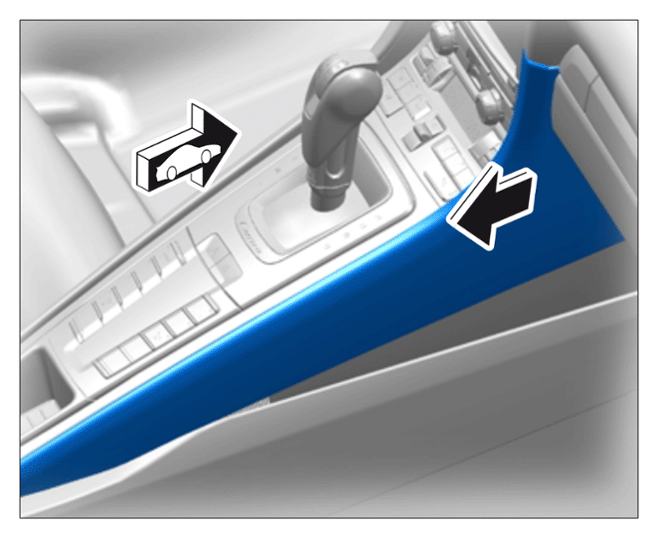

   Unclipping side trim panel

2. Pull side trim panel back out of the guide -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

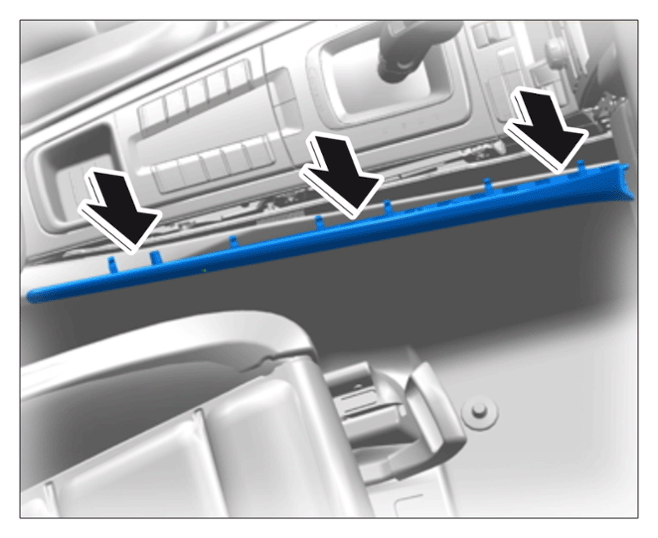

   Removing side trim panel

3. Unscrew and remove screw -1-  from the footwell outlet vent trim -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

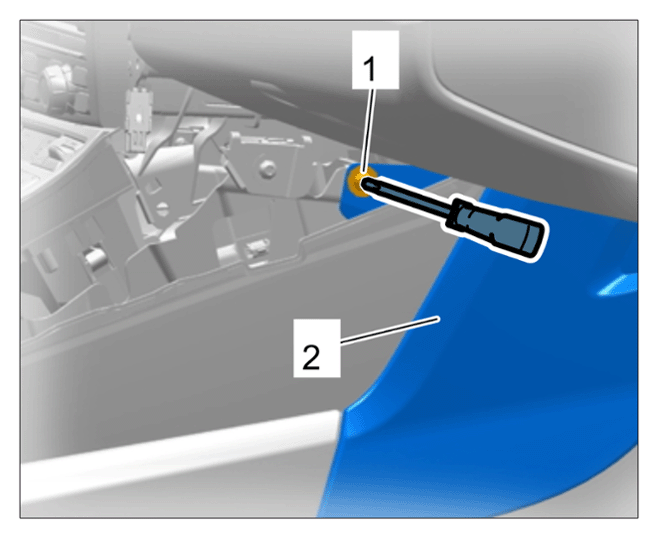

   Detaching footwell outlet vent trim

4. Disengage footwell outlet vent trim -1-  by pulling it forward -arrow A-  out of the guide -2-  .
5. Remove footwell outlet vent trim -1-  (-arrow B-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

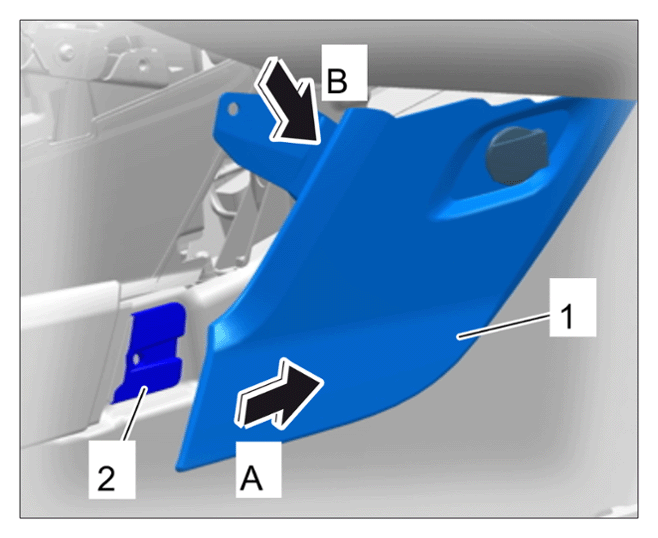

   Removing footwell outlet vent trim

6. Disconnect electric plug connection ¹⁾-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

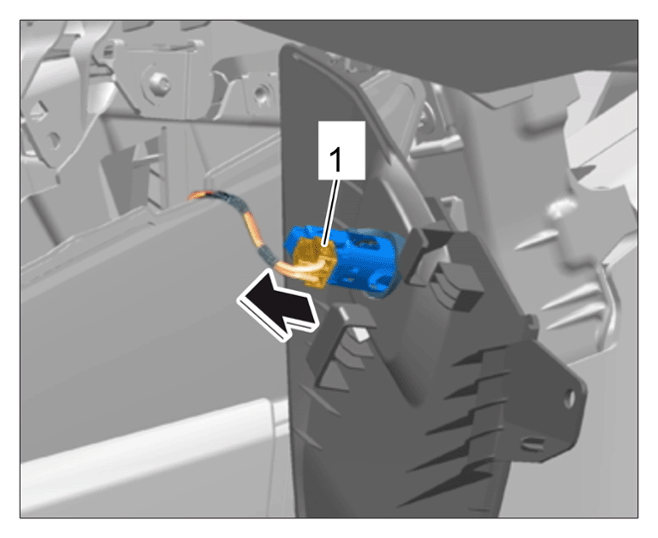

   Disconnecting electric plug connection

   ¹⁾ There is only an electric plug connection on the passenger's side.

7. Installation is performed in reverse order.
