Removing And Installing Glove-Compartment Lid

  1. Remove bolts -1-  using a suitable tool.
    G16223894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing bolts for glove compartment lid

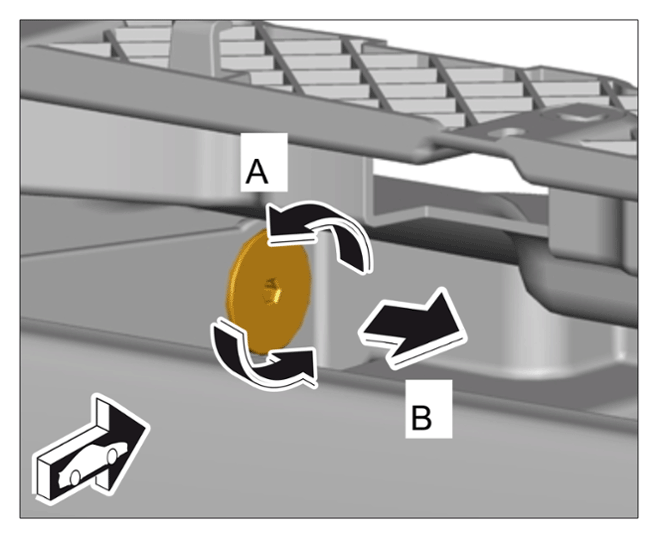

  2. Release limit stop for glove compartment lid -arrows A-  and remove it -arrow B-  .
    G16223895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing limit stop

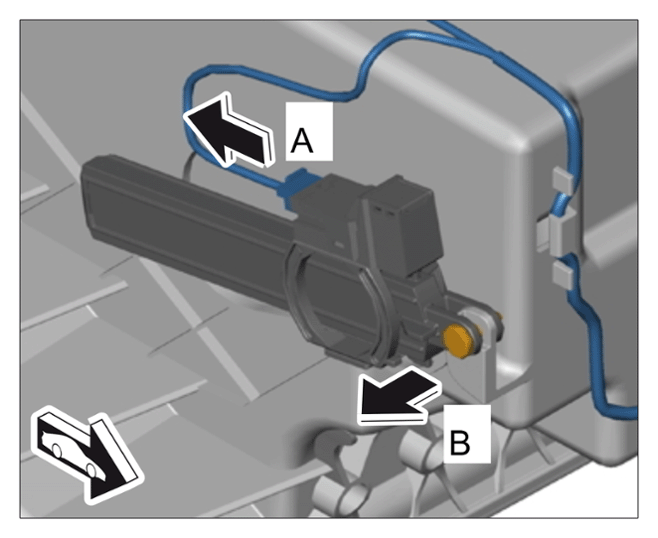

  3. Disconnect plug connection from glove compartment light switch -arrow A-  .
  4. Remove pin from glove compartment lid brake -arrow B-  .
    G16223896Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing plug connection and pin

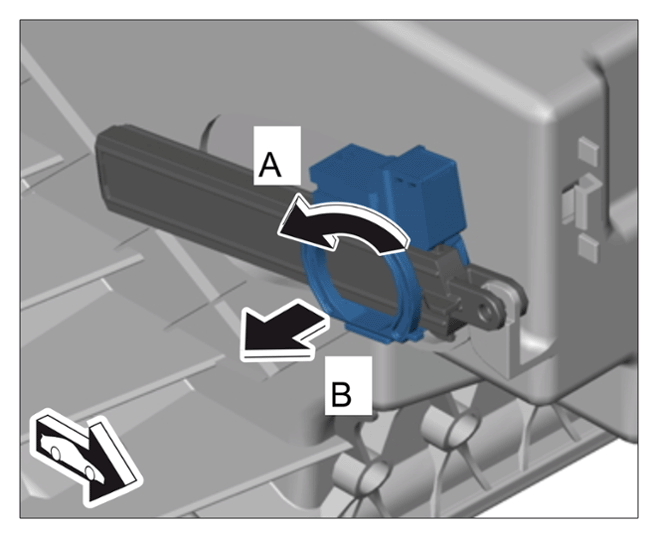

  5. Release glove compartment lid brake -arrow A-  and remove it -arrow B-  .
    G16223897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing glove compartment lid brake

  6. Remove glove compartment lid.
  7. Installation is performed in reverse order.
