Removing And Installing Glove Compartment Lock

Information

Locking mechanism remains in the handle.

1. Lift the handle and release the locking mechanism for the glove compartment lock -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

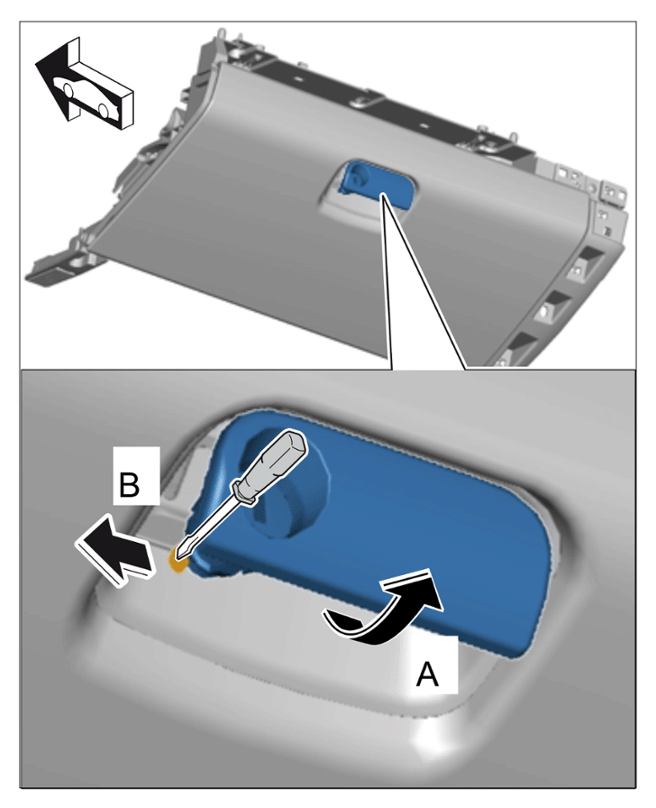

   Releasing lock

2. Insert ignition key and pull the glove compartment lock out of the handle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

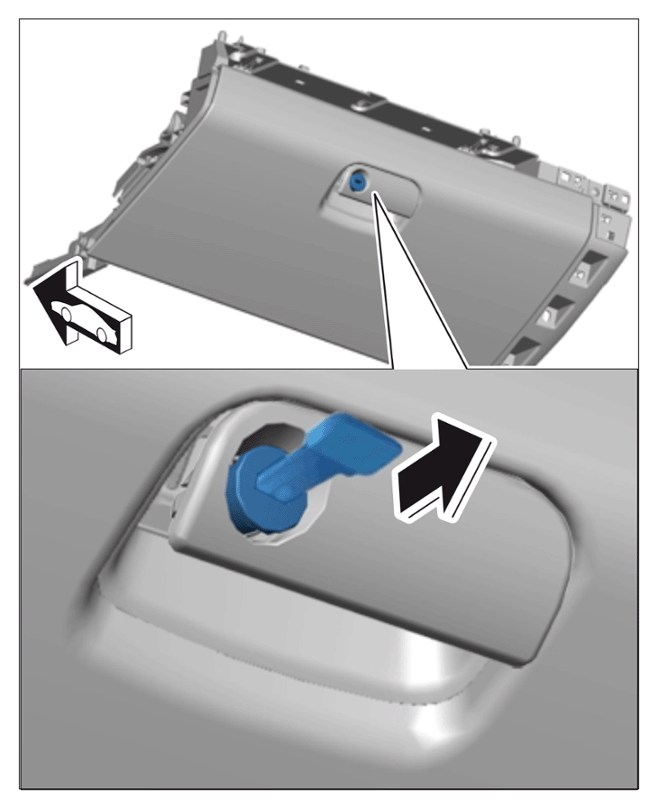

   Removing lock

   Information

   Slide the locking mechanism fully into the handle before pressing in the lock.

3. Installation is performed in reverse order.
