Removing Reversing Camera

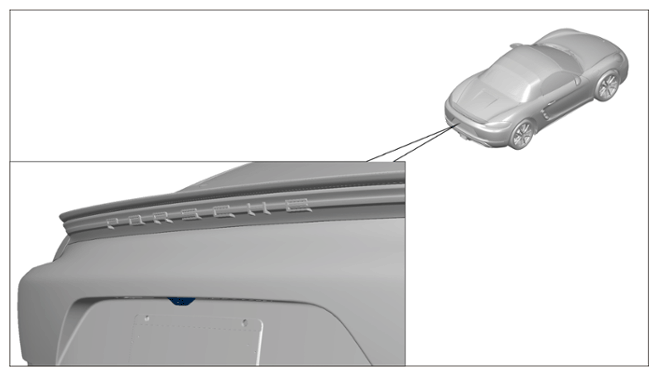

Installation position of reversing camera

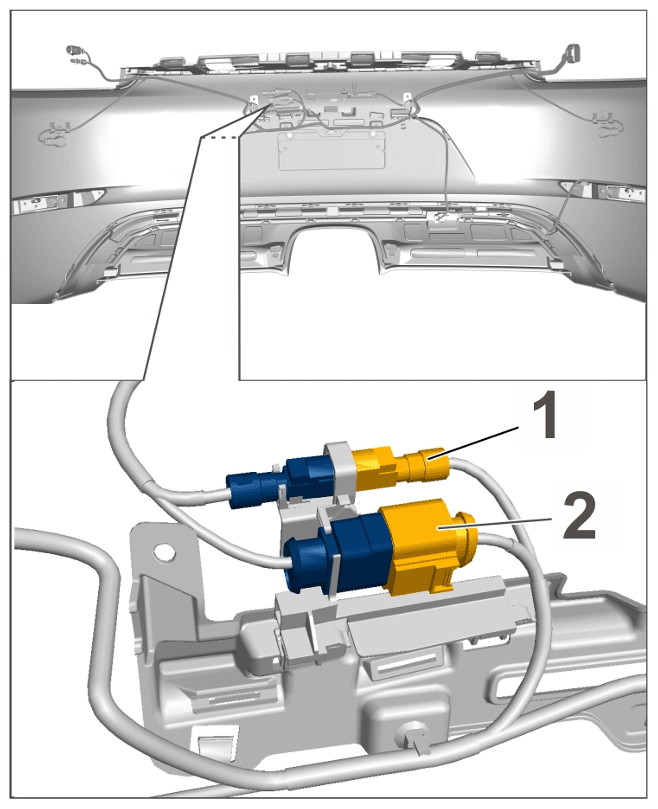

- Release and disconnect plug connection -1-
and -2-
.
Plug connection

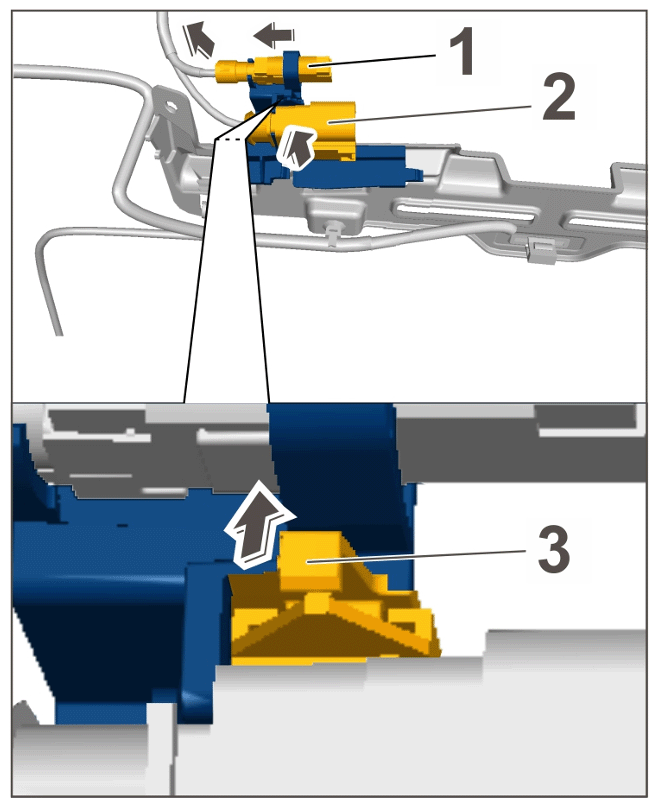

- Unclip and remove connector -1-
. -arrow-
Unclip connector.
- Remove connector -2-
.
Unclipping connector
- 3.1 Unclip connector. -3-
- 3.2 Remove connector. -arrow-
- Remove reversing camera.

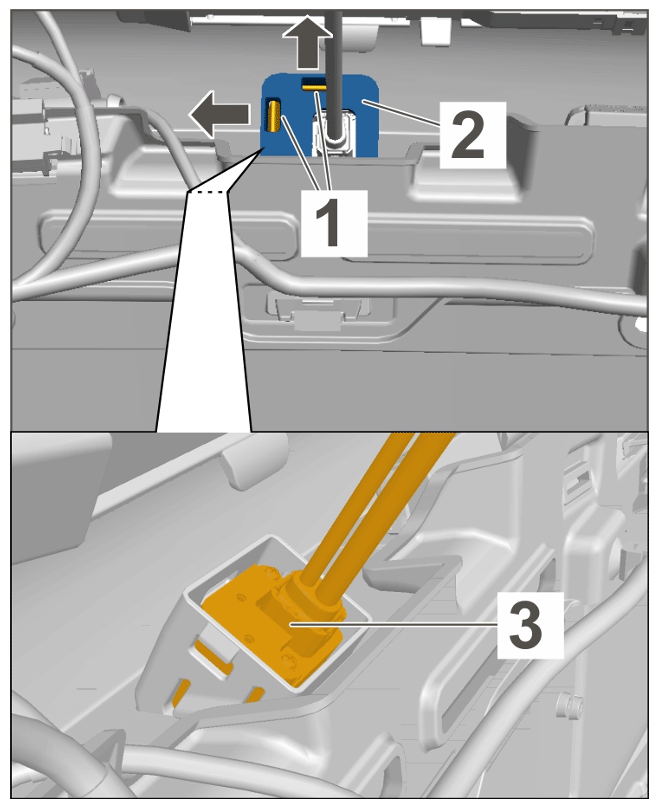

Removing reversing camera
- 4.1 Unclip fixing clips -1- using a suitable tool. -arrow-
- 4.2 Remove mounting plate -2- .
- 4.3 Remove reversing camera -3- .
