Removing Control Unit For Auxiliary Alarm System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

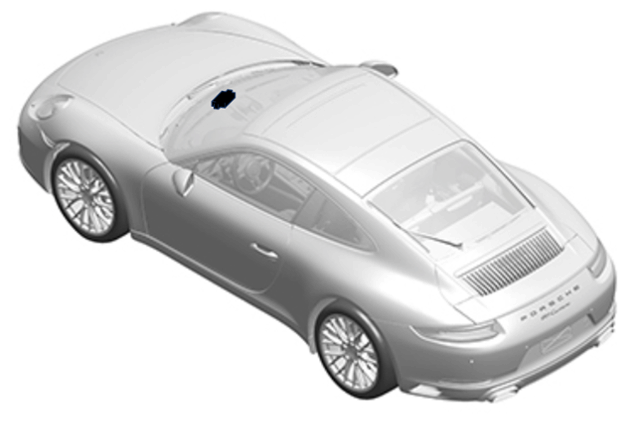

Installation position of control unit for auxiliary alarm system (on the 991 as an example)

1. Release and disconnect antennas and electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

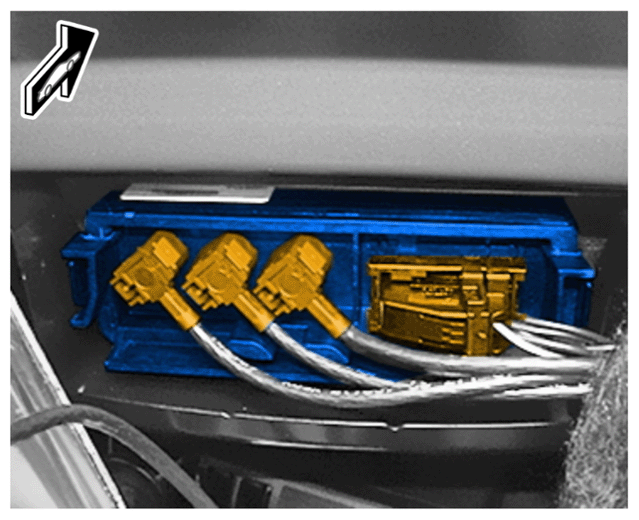

   Electric plug connections

2. Loosen fastening nuts on the holder.
3. Remove holder and control unit from the vehicle. Remove control unit from the holder.
