Removing And Installing Cigarette Lighter

  1. Switch off ignition and remove remote control (hand-held transmitter).

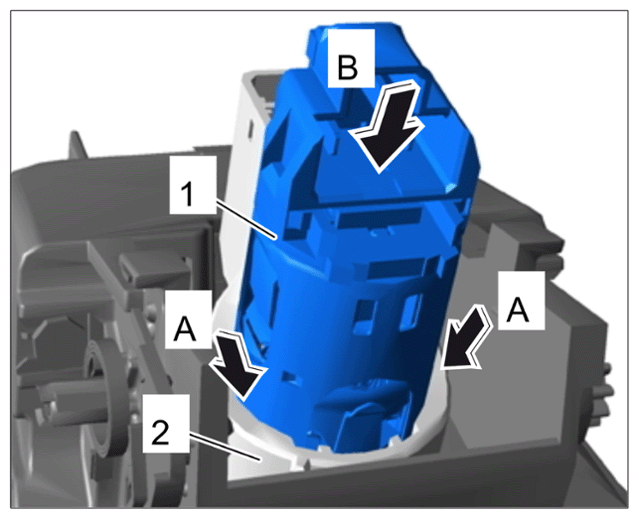

  2. Release cigarette lighter insert -1-  at the locking lugs -arrows A-  and press it up and out -arrow B-  .
    G16225553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cigarette lighter insert

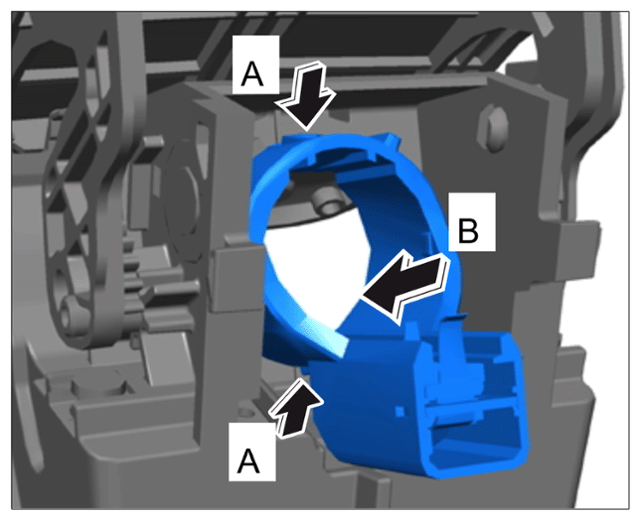

  3. Release light unit -arrows A-  and lift it out of the ashtray -arrow B-  .
    G16225554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing light unit

  4. Installation is performed in reverse order.
