Removing And Installing Plug Socket

Information

The following steps are shown on the plug socket in the centre console as an example. The steps are identical for the plug socket in the right footwell.

1. Remove plug socket.
   1. 1.1  Release locking lugs -1 and 2-  (-arrows A-  ).
   2. 1.2  Unclip plug socket from retaining ring -arrow B-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

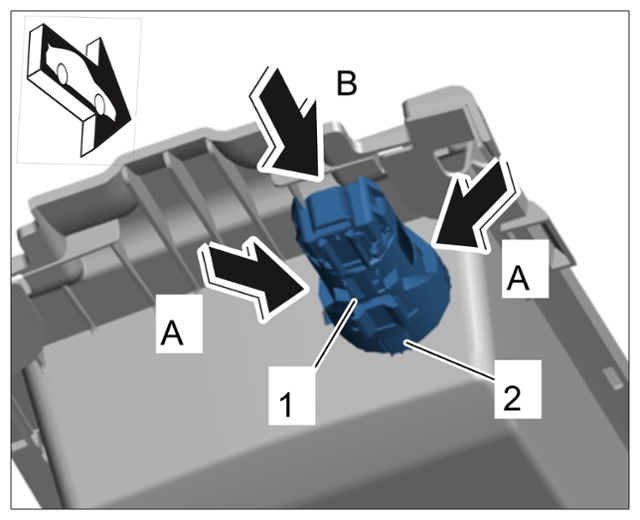

   Removing plug socket

2. Remove retaining ring with cover.
   1. 2.1  Release locking lugs -arrows A-  .
   2. 2.2  Remove retaining ring -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

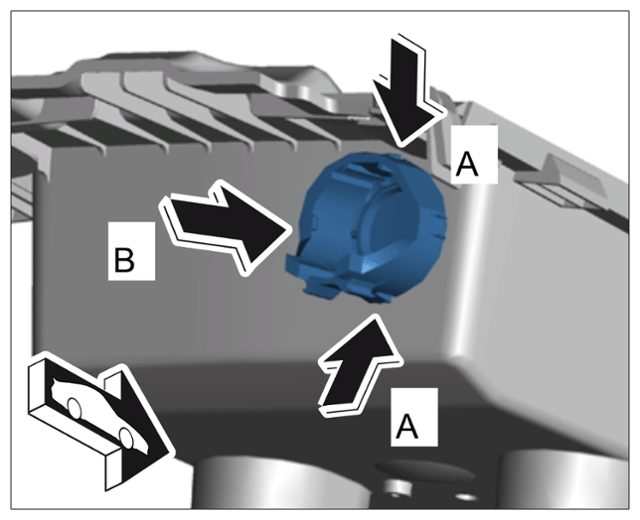

   Removing retaining ring with cover

3. Installation is performed in reverse order.
