Removing And Installing Horn

Information

The following steps are shown on the left-hand side of the vehicle as an example. The procedure is identical on both sides of the vehicle.

1. Unscrew screws -1-  on front apron and bend the front apron down slightly -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

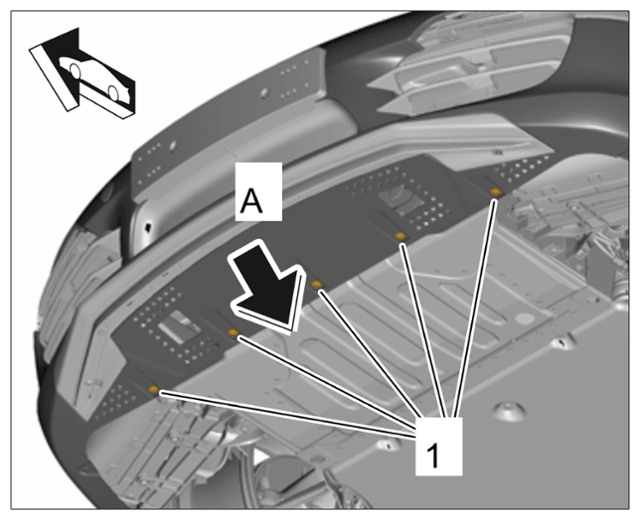

   Loosening front apron (shown on the 991)

2. Unscrew nut -1-  and remove horn -2-  together with the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

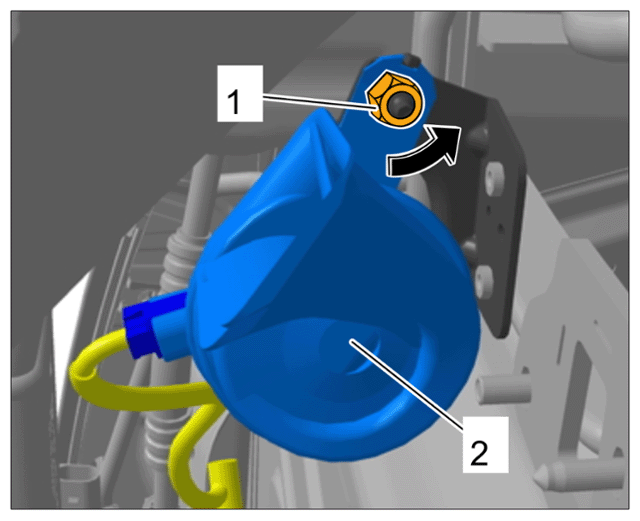

   Removing horn

3. Release and disconnect electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

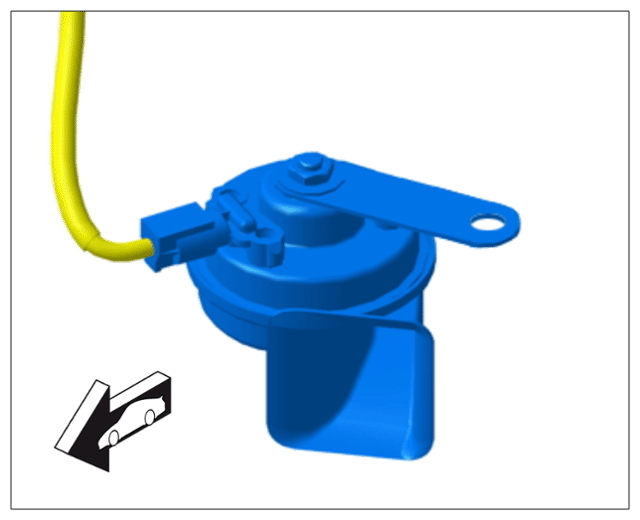

   Releasing and pulling off electric plug connection

4. Installation is performed in reverse order.
5. Screw in and tighten screws on front apron.
6. Screw in and tighten nut on horn.
