Removing And Installing Gateway Control Unit

  1. Switch off ignition and remove ignition key.

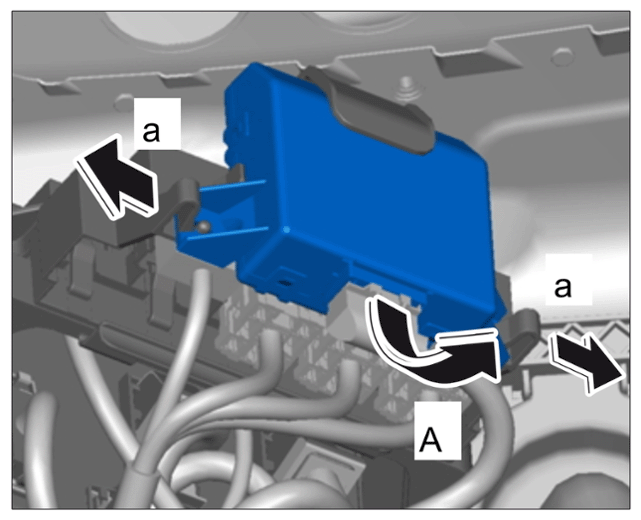

  2. Release -arrows a-  , swivel out -arrow A-  and pull out gateway control unit in a downward direction.
    G16225543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening gateway control unit

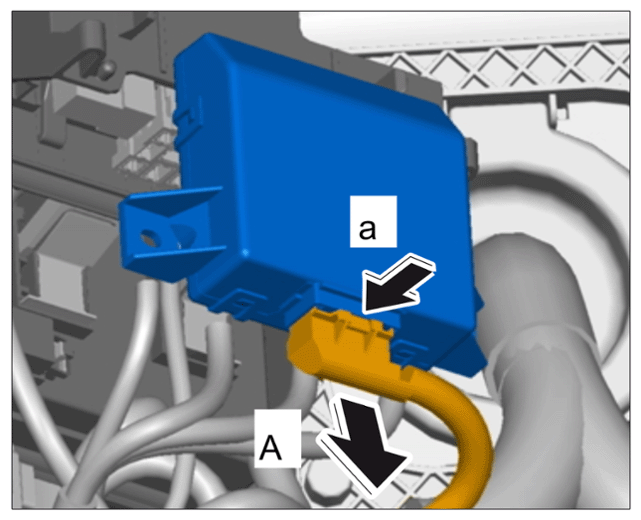

  3. Release electric plug connection -arrow a-  and disconnect it -arrow A-  .
  4. Remove gateway control unit.
    G16225544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing gateway control unit

  5. Installation is performed in reverse order.
