Removing And Installing Instrument Cluster

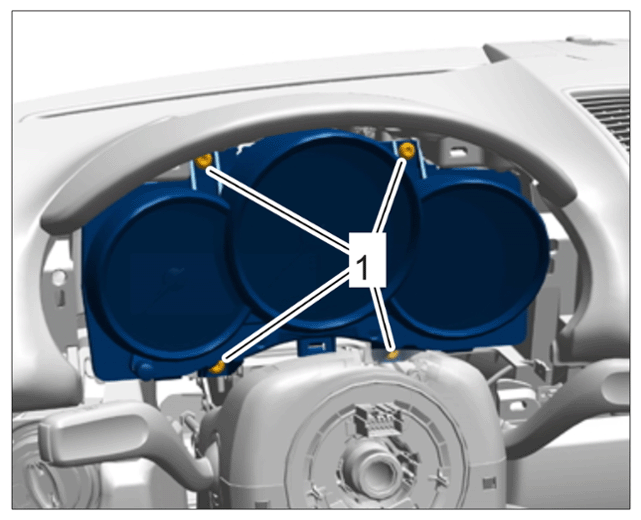

  1. Unscrew and remove screws -1-  .
    G16225539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening instrument cluster

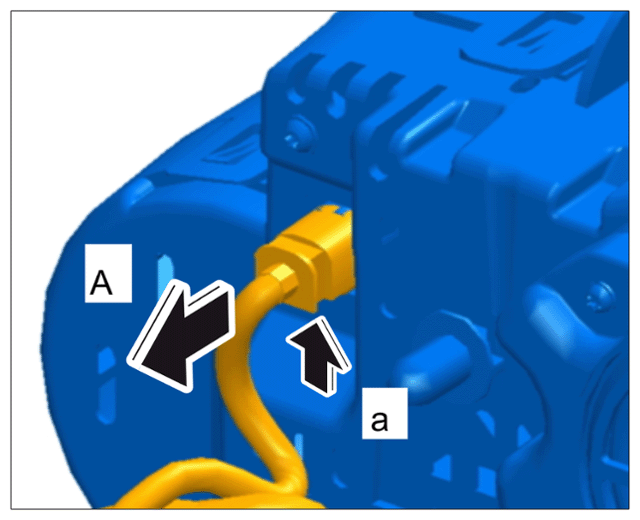

  2. Release electric plug connection -arrow a-  and disconnect it -arrow A-  .
    G16225540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

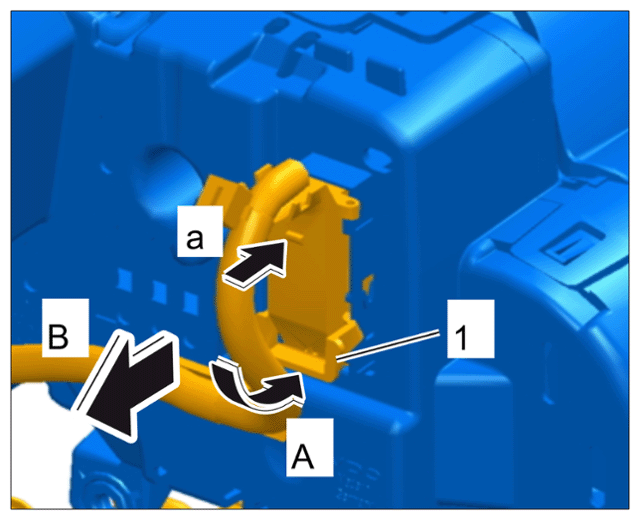

  3. Release electric plug connection -arrow a-  and disconnect it -arrow B-  .
    1. 3.1  Release clip -1-  on electric plug connection -arrow a-  and fold it down -arrow A-  .
    2. 3.2  Disconnect electric plug connection -arrow B-  .
    G16225541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  4. Installation is performed in reverse order.
