Removing Reversing Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

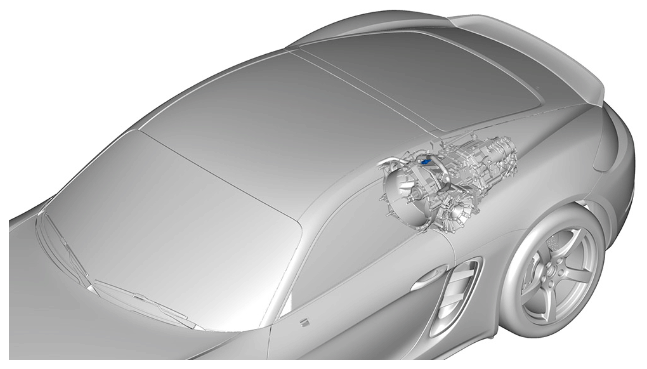

Installation position of reversing light switch

1. Unscrew and remove fastening screw -1-  on the gear support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw on gear support

2. Release and disconnect electric plug connection -5-  .
3. Secure disc valve holder -2-  together with all add-on parts as far up as possible so that the reversing light switch is exposed -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

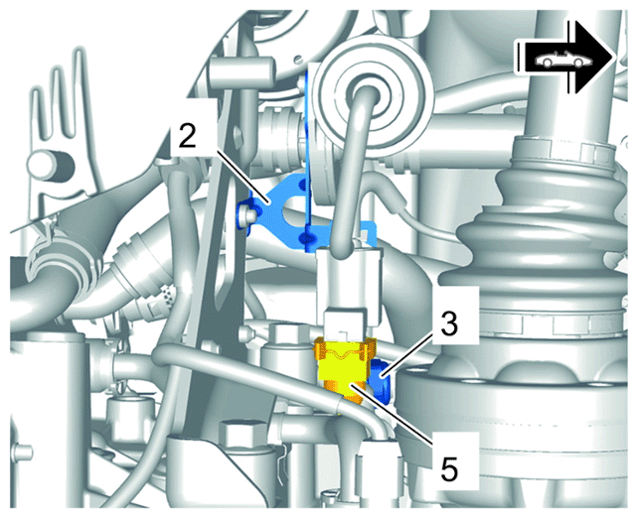

   Disc valve holder

4. Release and disconnect electric plug connection -4-  on reversing light switch -3-  .
5. Unscrew reversing light switch -3-  and collect escaping oil.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

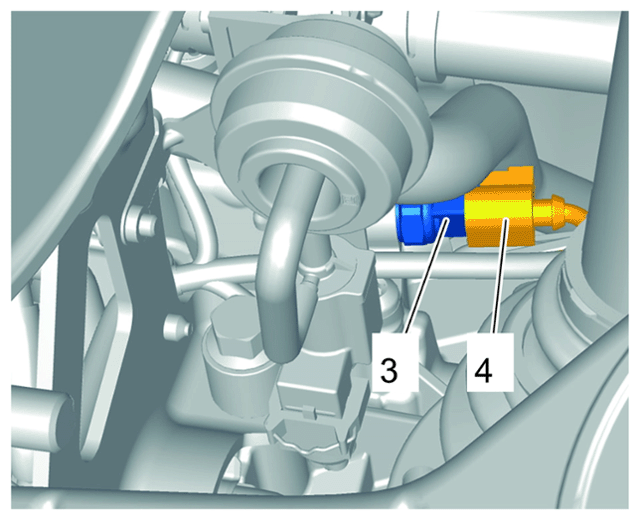

   Reversing light switch
