Removing And Installing Auxiliary Headlight

  1. Disconnect electric plug connection -2-  .
  2. Unscrew screws -3-  and remove auxiliary headlight -1-  .

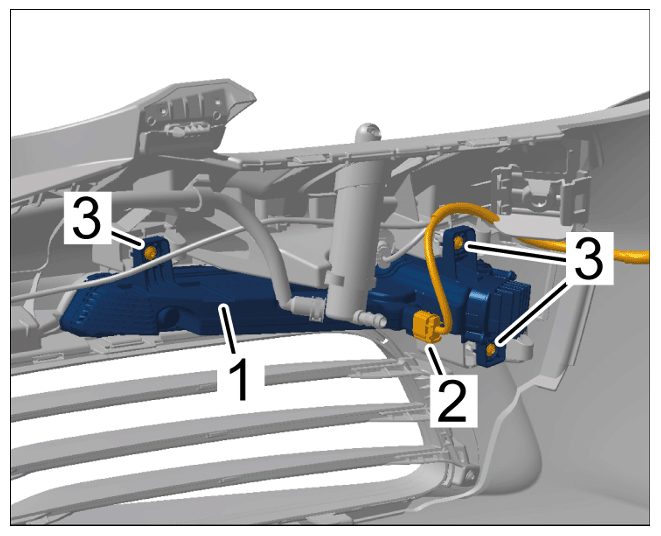

    G16225890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing auxiliary headlight

  3. Installation is performed in reverse order.
