Removing Auxiliary Brake Light

  1. Loosen additional brake light.
    1. 1.1  Remove stopper -1-  .
    2. 1.2  Release and disconnect electric plug connection -2-  .
    3. 1.3  Unscrew nuts -3-  .

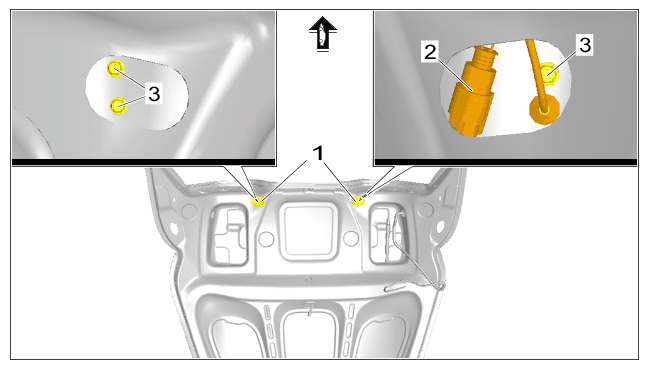

      G16225886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws for additional brake light

  2. Remove additional brake light -1-  .
    1. 2.1  Lift up additional brake light -1-  .
    2. 2.2  Guide out cable and electric plug connection.
    3. 2.3  Remove additional brake light -1-  .

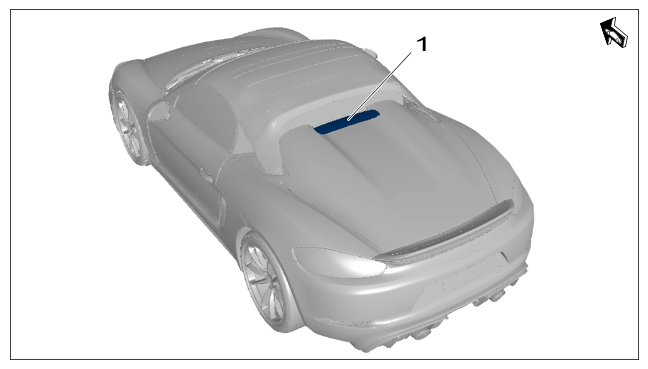

      G16225887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Additional brake light
