Installing Additional Brake Light

  1. Install additional brake light -1-  .
    1. 1.1  Insert cable and electric plug connection.
    2. 1.2  Fit additional brake light -1-  .

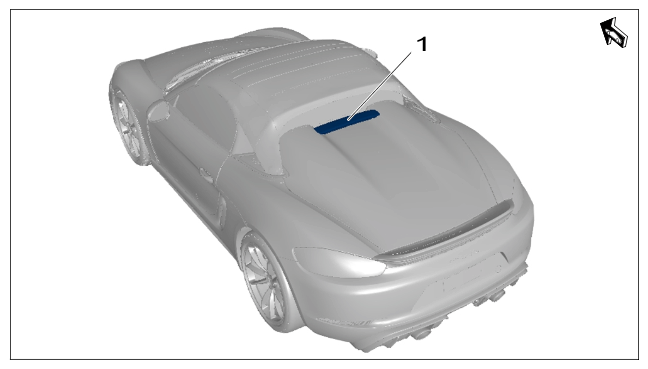

      G16225888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Additional brake light

  2. Secure additional brake light.
    1. 2.1  Screw on and tighten nuts -3-  .

      > Tightening torque 3.5 Nm (2.5 ftlb.)

    2. 2.2  Connect and lock electric plug connection -2-  .
    3. 2.3  Insert stopper -1-  .

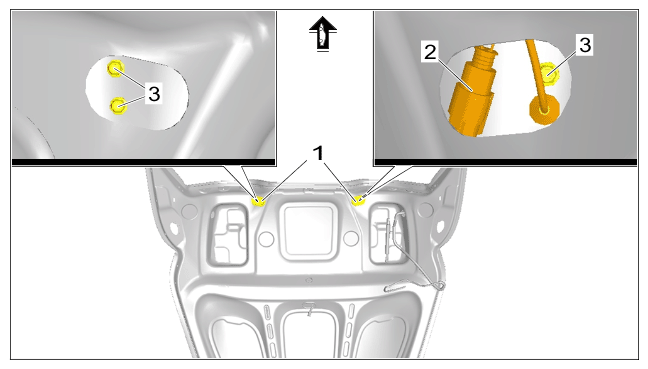

      G16225889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws for additional brake light
