Removing Rear Fog Light

  1. Release electric plug connection for rear fog light and pull it off.

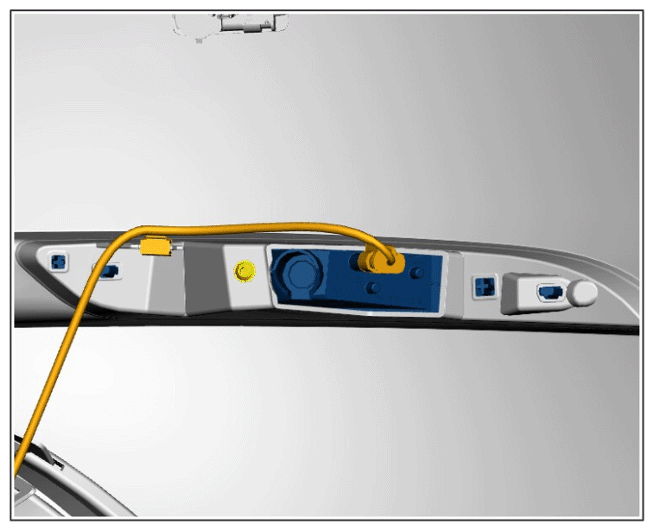

    G16225882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for rear fog light

  2. Undo screw on rear fog light.

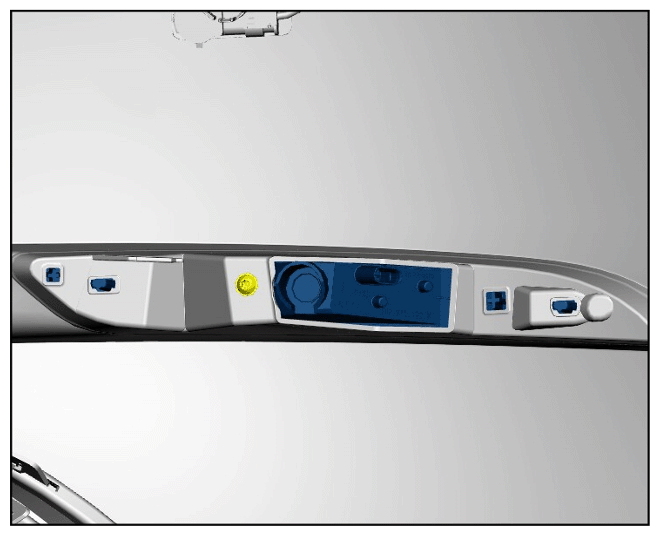

    G16225883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear fog light screw

  3. Unclip rear fog light and pull it backwards out of the rear bumper.

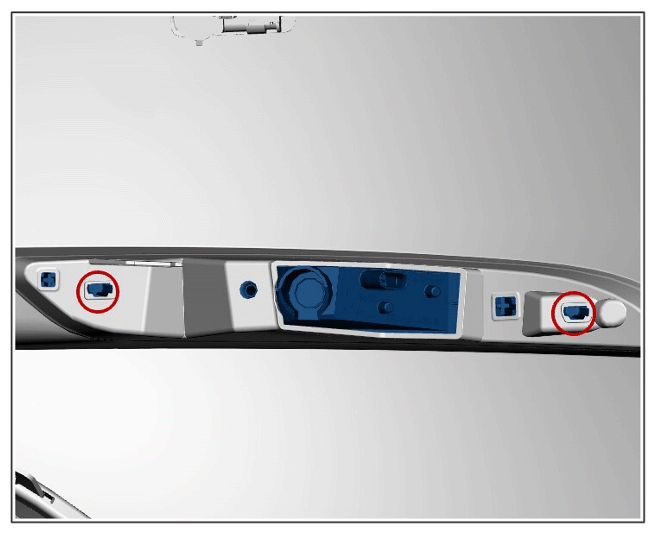

    G16225884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear fog light
