Replacing Gas-Discharge Headlight

  1. Unscrew the four fastening screws on the headlight cover and remove the headlight cover.

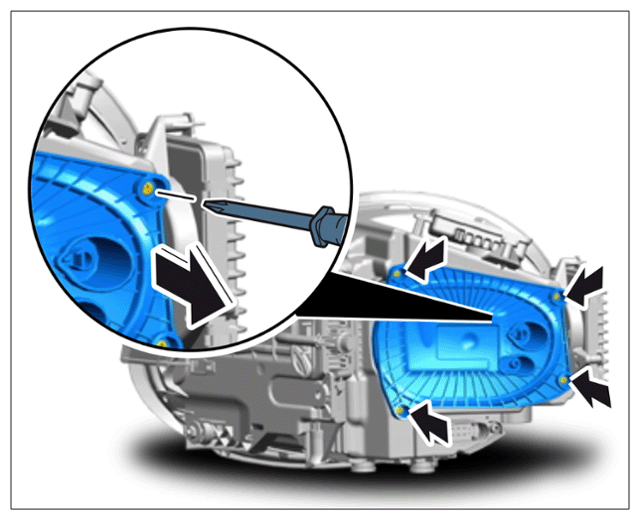

    G16225878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing headlight cover

  2. Unplug connector or the gas-discharge headlight -Arrow-  .

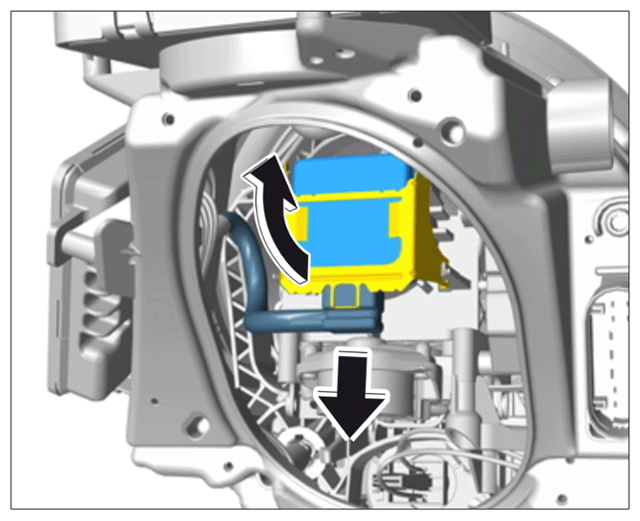

    G16225879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing gas-discharge cornering light

  3. Release and open the retaining bracket -Arrow-  .
  4. Pull out gas-discharge headlight.
  5. Install gas-discharge headlight.
  6. Close the retaining bracket and clip it into the two mounting points.
  7. Plug electric connector for the gas-discharge headlight in fully.

    Vehicles with fan, continue with Step 8.

    Vehicle without fan, continue with Step  9.

  8. Convert fan.
    1. 8.1  Loosen fan by turning it anti-clockwise from the old gas-discharge headlight and remove it.
    2. 8.2  Release and disconnect electric plug connection for fan.
    3. 8.3  Install fan on new gas-discharge headlight in reverse order.

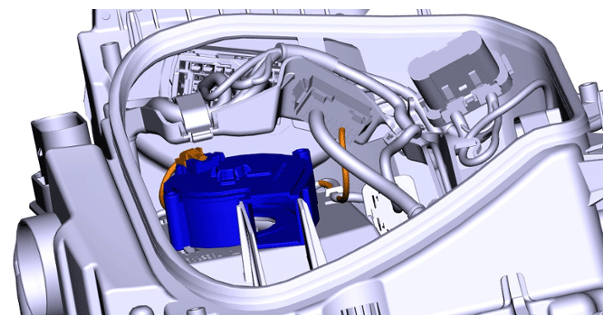

      G16225880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fan

  9. Fit headlight cover and secure with the four fastening screws.
