Removing Headlight Light Bulb Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Unscrew and remove screws -1-  .
2. Carefully remove headlight light bulb control unit -2-  from the headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

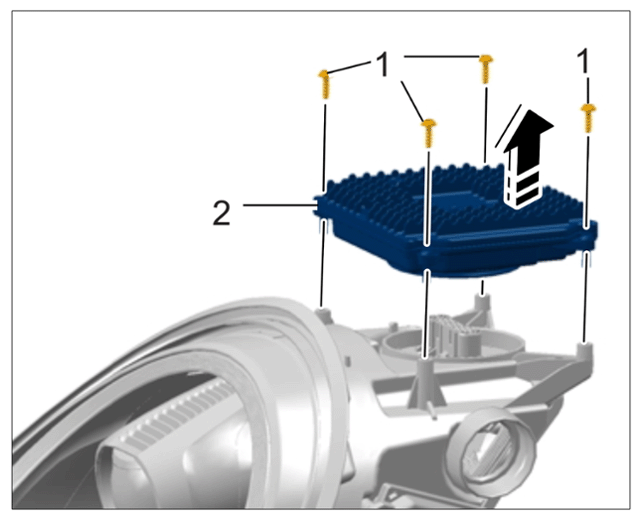

   Removing headlight light bulb control unit
