Installing Headlight Light Bulb Control Unit

  1. Check that the seal -3-  is fitted correctly on the headlight light bulb control unit -2-  .
  2. Carefully insert headlight light bulb control unit -2-  into the headlight.
  3. Tighten screws -1-  .

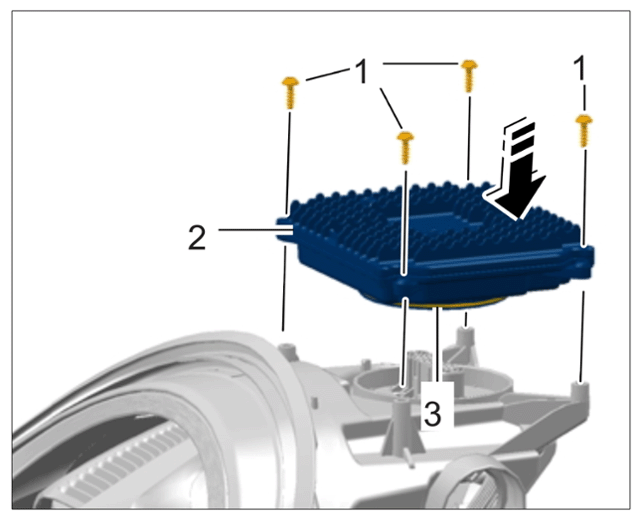

    G16225877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing headlight light bulb control unit
