Removing And Installing Steering-Column Switch

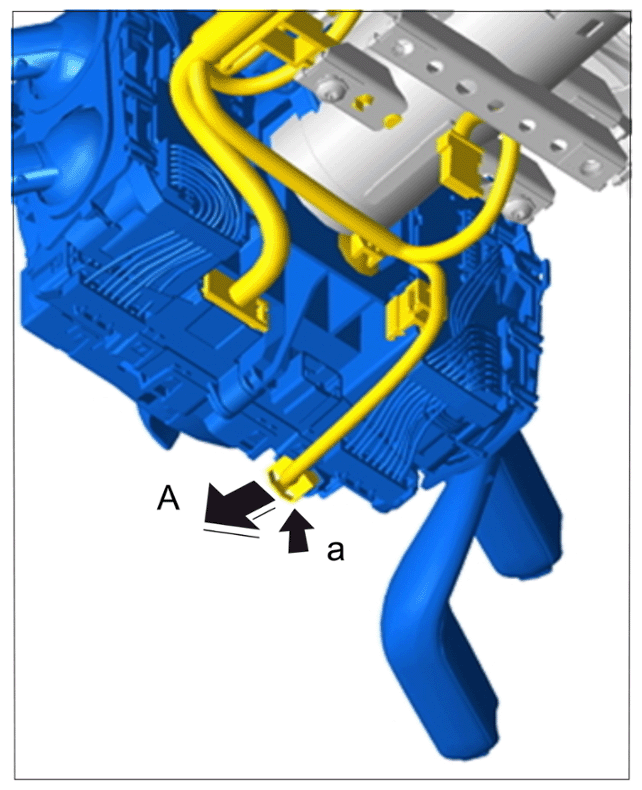

Release electric plug connection -arrow a- and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

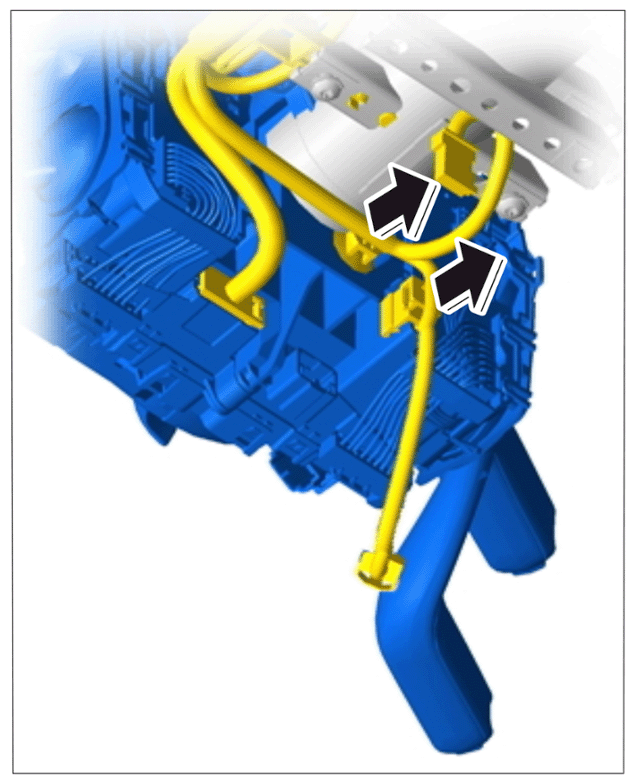

Unclip electric lines -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric lines

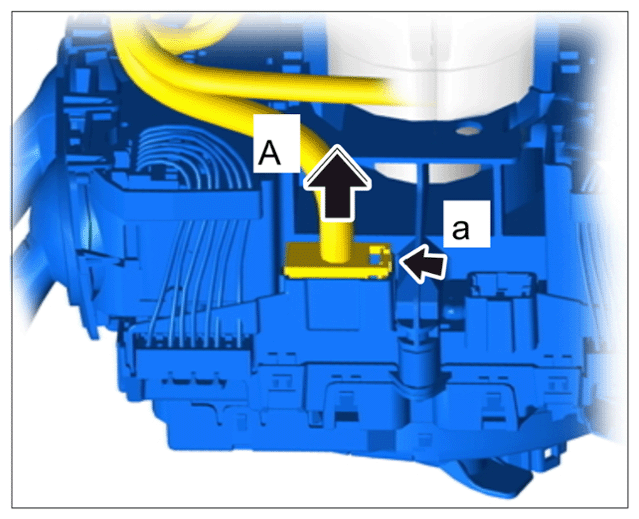

Release electric plug connection -arrow a- and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

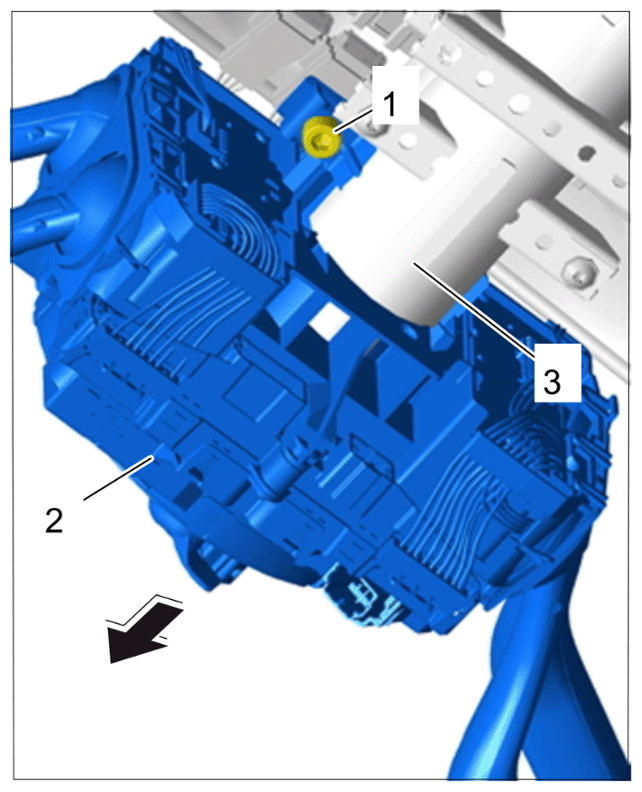

Unscrew and remove screw -1- .
Remove steering-column switch -2- with control unit for steering wheel electronics from the steering column -3- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing steering column switch
Installation is performed in reverse order. > Tightening torque 6 Nm (4.5 ftlb.)
