Removing And Installing Front-End Electronics

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

Information

The number of plug connections can vary depending on equipment.

1. Release the locking clp, swivel it 90° to the right -arrow a-  and unplug electric plug connection -arrow A-  .
2. Release electric plug connection -arrow b-  and unplug it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

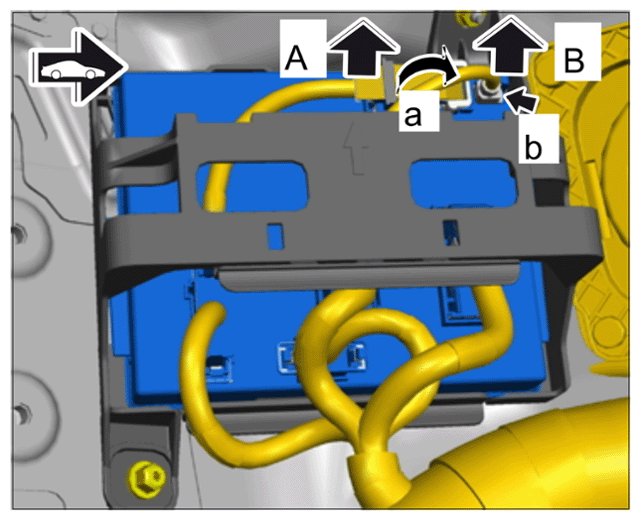

   Releasing and pulling off electric plug connection

3. Press the locking lug down -arrow A-  and unclip the front-end electronics unit -1-  from the bracket -2-  (-arrow B-  ).
   1. The bracket remains installed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

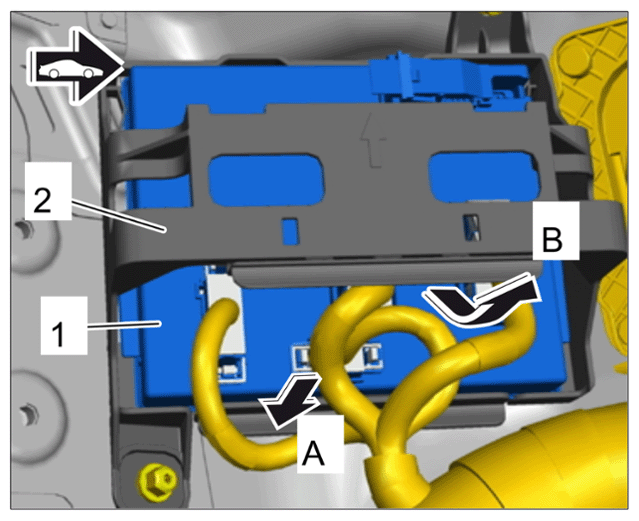

   Releasing front-end electronics unit

4. Release the locking clip, swivel it up by 90° -arrow a, b-  and disconnect electric plug connections -arrow A, B-  .
5. Release the locking lugs -arrows c, d-  and disconnect the plug connections -arrows C, D-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

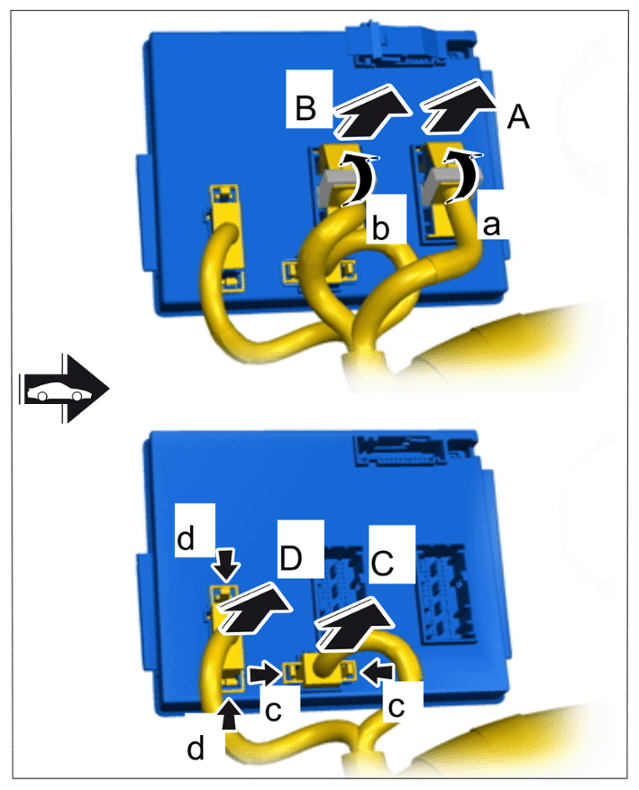

   Releasing and pulling off electric plug connections

6. Installation is performed in reverse order.
