Removing And Installing Warning-Light Switch

  1. Release locking lugs -2-  on selector-lever cover -3-  and remove warning-light switch -1-  .

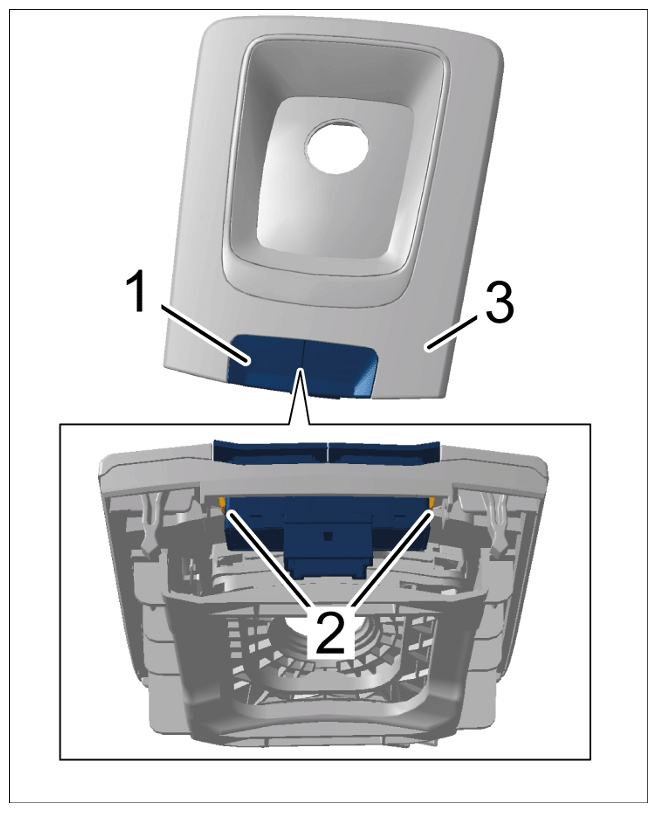

    G16225862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing warning light switch

  2. Installation is performed in reverse order.
