Removing Tail Light

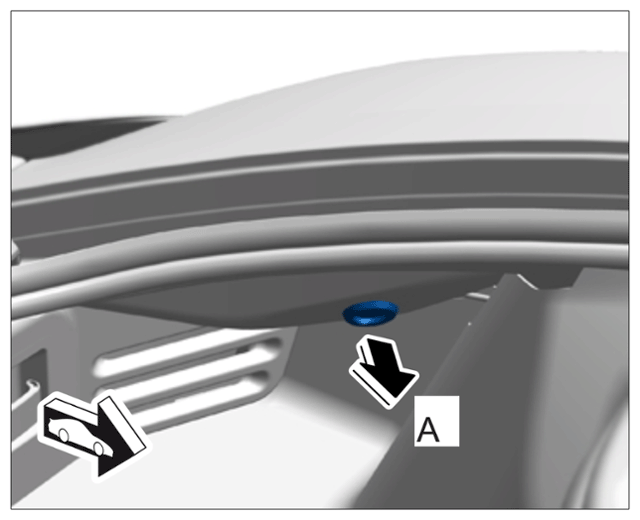

Remove rubber stopper in the rear luggage compartment -arrow "A"- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rubber stopper in rear luggage compartment

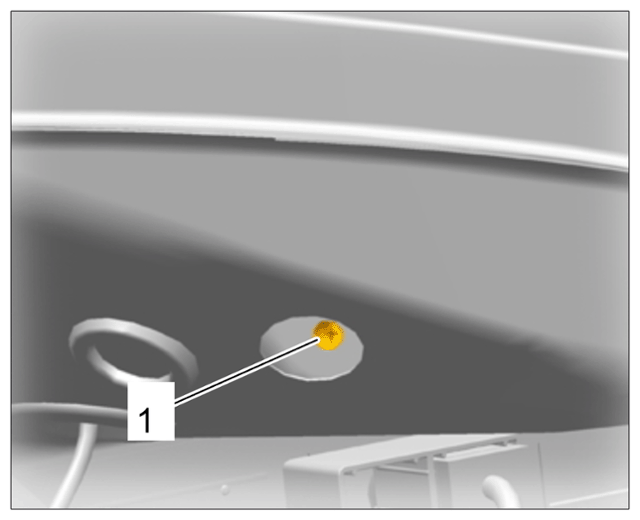

Unscrew and remove fastening screw -1- for the tail light in the rear luggage compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening tail light in rear luggage compartment

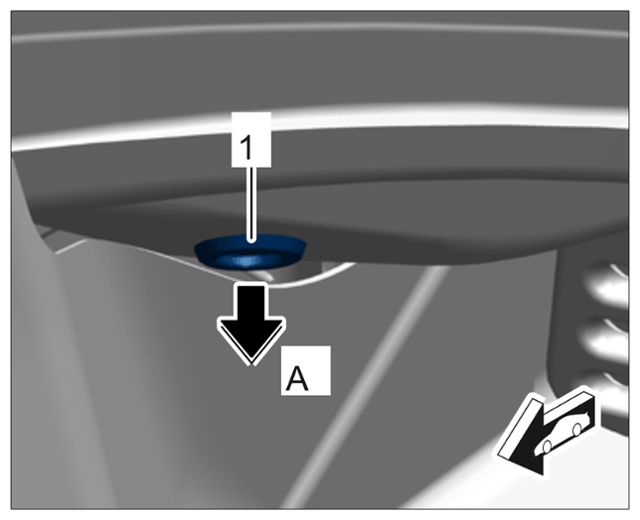

Remove rubber stopper -1- in the wheel housing -arrow "A"- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rubber stopper in wheel housing

Loosen tail light.

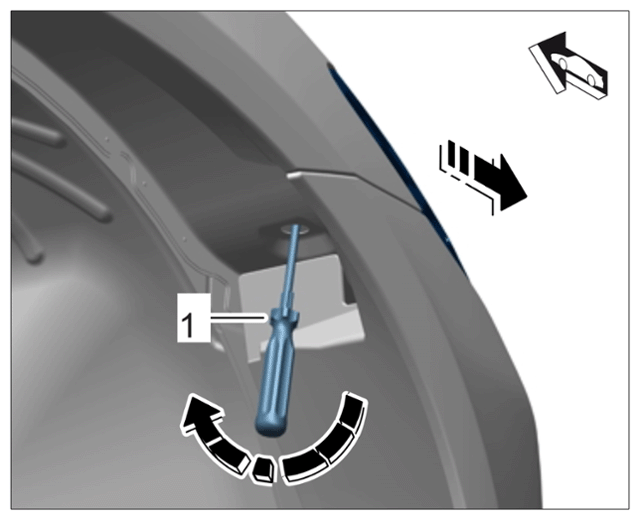

4.1 Insert a screwdriver -1- through the opening and position it on the removal surface of the tail light.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing tail light

4.2 Press the tail light out of the ball socket by levering -arrow- the screwdriver -1- .
Secure the tail light from outside to prevent it from falling down.

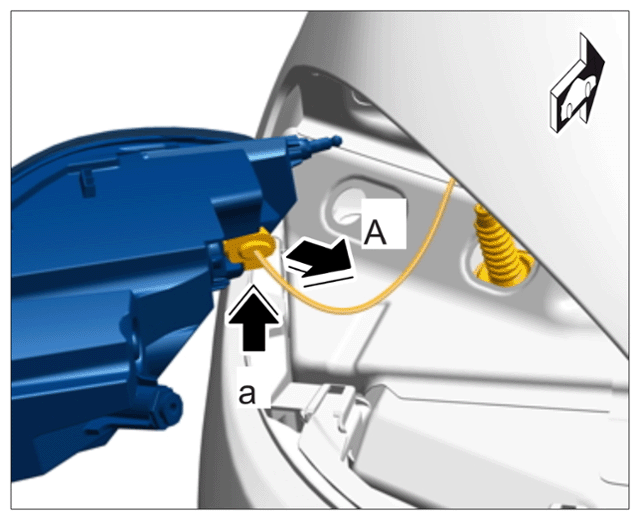

Release electric plug connection -arrow "a"- and disconnect it -arrow "A"- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection for tail light
