Installing Tail Light

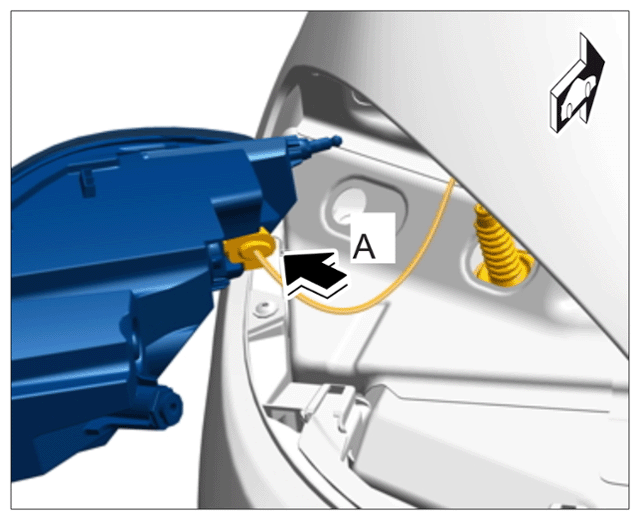

Connect electric plug connection -arrow "A"- until the lock engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connection for tail light
Pre-position the tail light -1- so that the T-bolts run into the guide rails.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing tail light

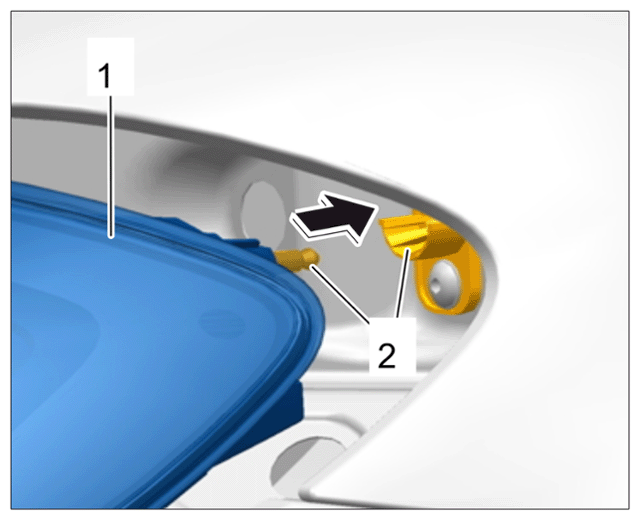

Slide in tail light -1- until the catch -2- locks securely.

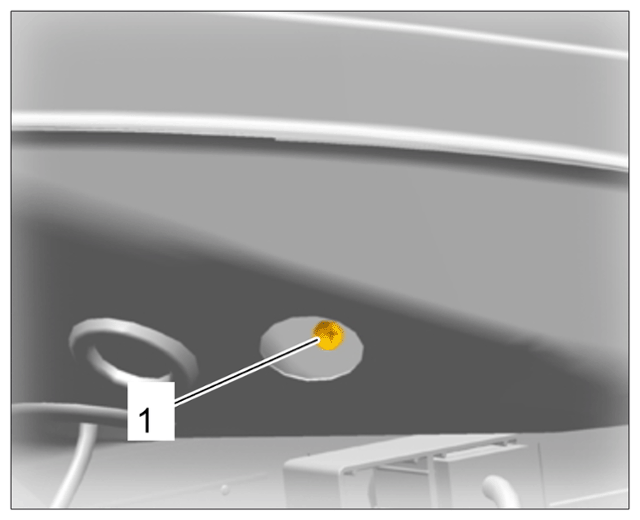

Fit fastening screw -1- for the tail light and tighten to > Tightening torque 2.0 Nm (1.5 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing tail light in rear luggage compartment

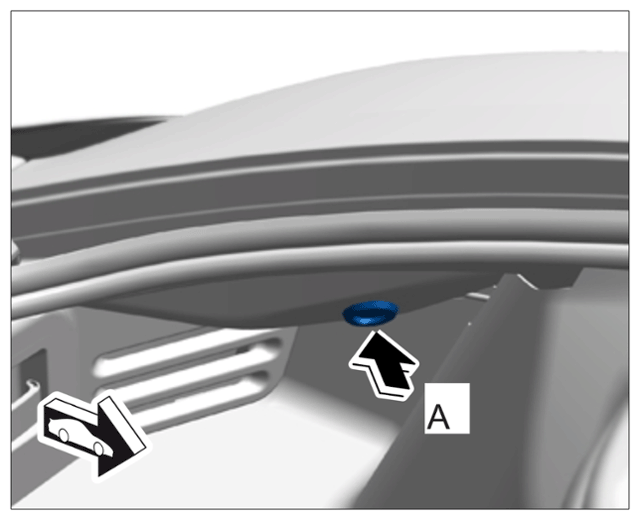

Fit rubber stopper in the rear luggage compartment -arrow "A"- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting rubber stopper in rear luggage compartment

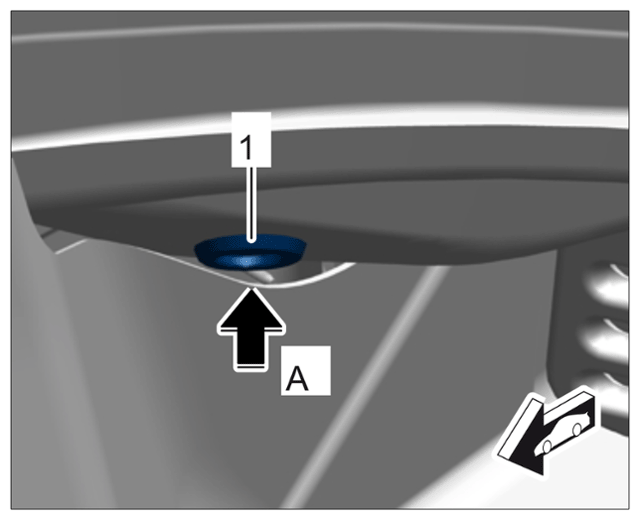

Fit rubber stopper -1- in the wheel housing -arrow "A"- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting rubber stopper in wheel housing
