Removing And Installing Main Headlights

  1. Disconnect electric plug connection -1-  .
    G16225844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection

    Information

    Only loosen nuts as far as required until the headlight can be removed.

  2. Loosen nuts -2-  and remove headlight -1-  .

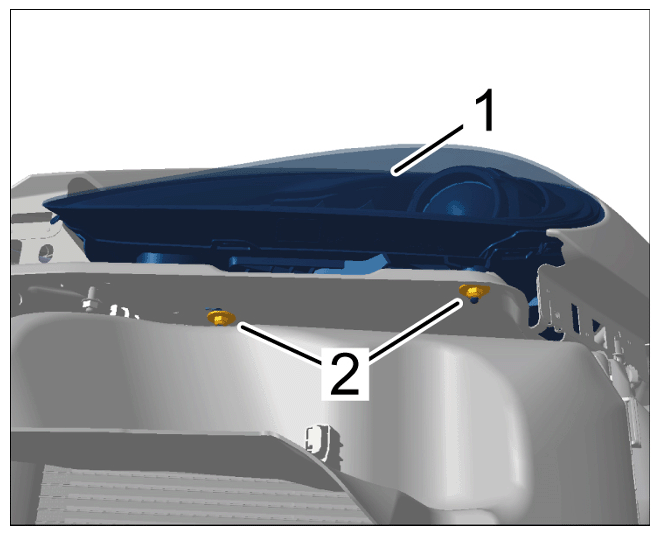

    G16225845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing main headlight

  3. Installation is performed in reverse order.
