Removing Main Light Switch

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
- Remove the ignition key and switch off load before disconnecting or removing load.

Switch off ignition and remove remote control (hand-held transmitter).

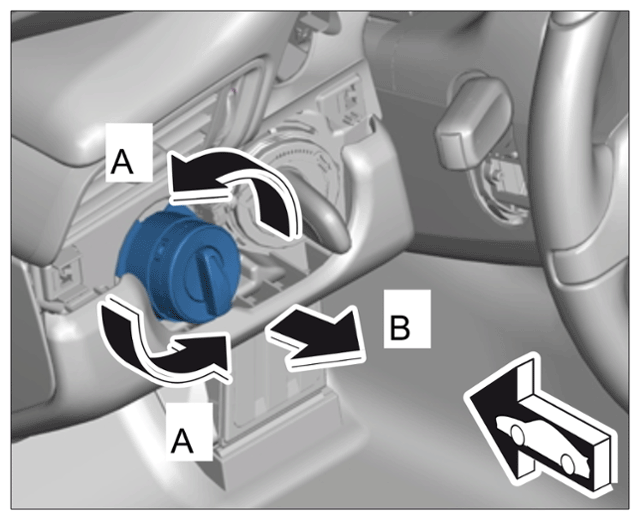

Release the main light switch by turning it -arrows A- and then remove it -arrows B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing main light switch

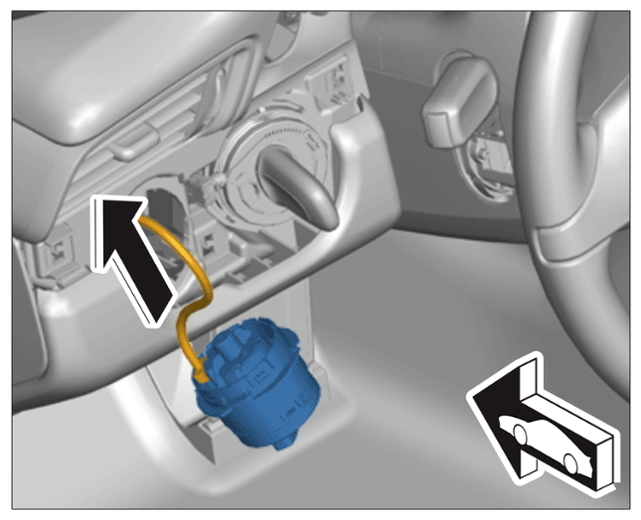

Disconnect electric plug connection for main headlight switch -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off electric plug connection
