Installing Main Light Switch

  1. Connect electric plug connection -arrow-  .

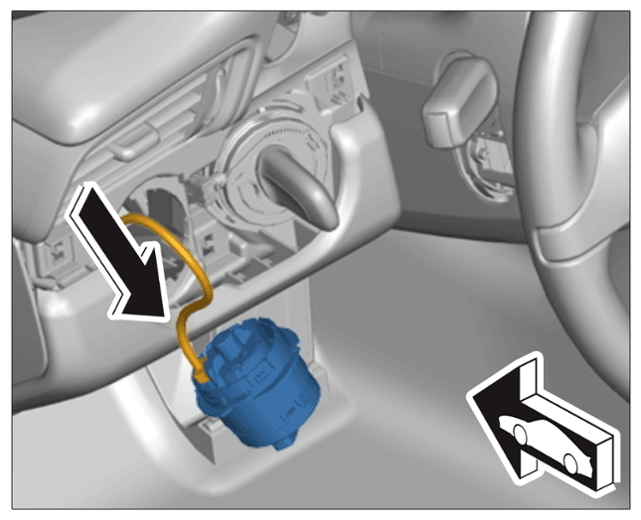

    G16225836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting electric plug connection

  2. Insert main headlight switch into the cut-out and lock it by turning it -arrows-  .

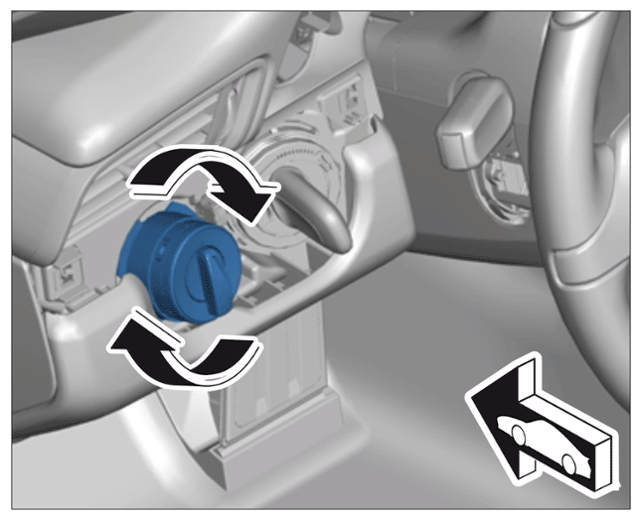

    G16225837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing main light switch

  3. Check function.
