Oil Sensors

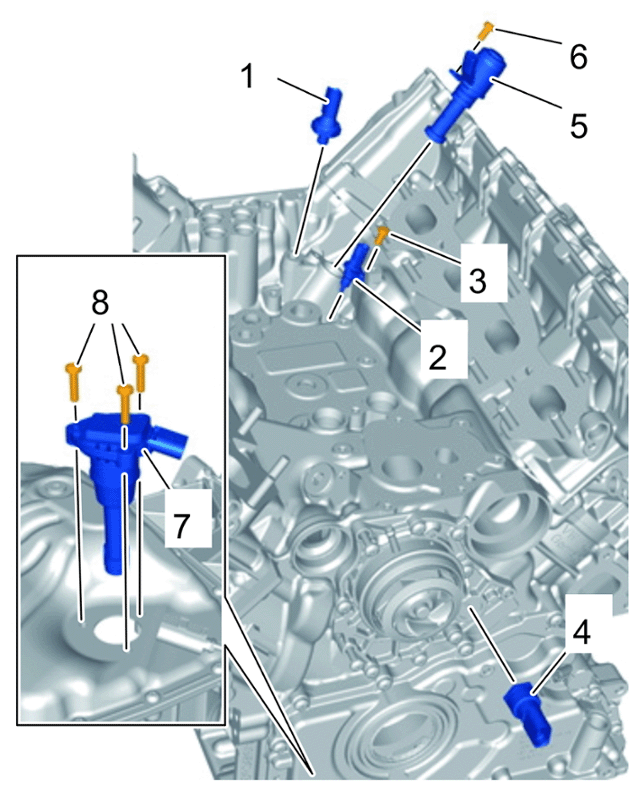

Oil sensors - V8 Turbo
| 1 | Oil pressure switch > Tightening torque 20 Nm (15 ftlb.) |
| 2 | Oil temperature sensor |
| 3 | Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) |
| 4 | Oil pressure sensor > Tightening torque 20 Nm (15 ftlb.) |
| 5 | Oil spray jet control valve |
| 6 | Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) |
| 7 | Oil level sensor (oil pan) |
| 8 | Screw (for torque, see section on Oil pan) |
