Group 10 - Engine - Crankcase, Suspension
>>
Tightening Sequence For Crankcase Cover
Tightening Sequence For Crankcase Cover

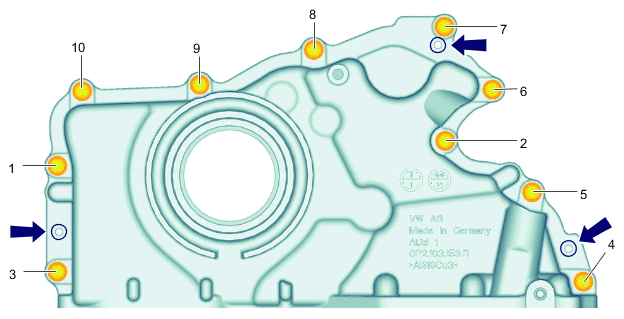

Fig 1: Crankcase Cover Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for crankcase cover
1-10
Tightening sequence for crankcase cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
