Applying Sealant On Crankcase Cover

Information

Fitting and sealing components using liquid sealant.

• Clean sealing faces to remove all traces of residual sealant.
• Sealing faces must be free of grease and oil.
• Clean sealing faces with primer Loctite 7515.
• Use liquid sealant Loctite 5970-BM.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

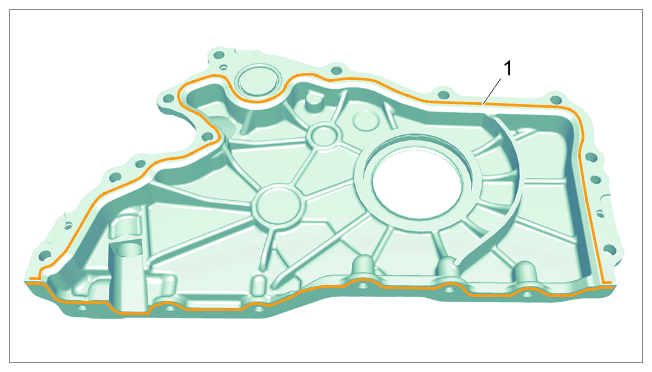

Applying sealant on crankcase cover - V8 biturbo
