Replacing Rear Speed Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear speed sensor -1-  .
    G15856836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear speed sensor

    1. 1.1 Release and disconnect electric connector -3-  .
    2. 1.2 Unscrew fastening screw -2-  .
  2. Install rear speed sensor -1-  .

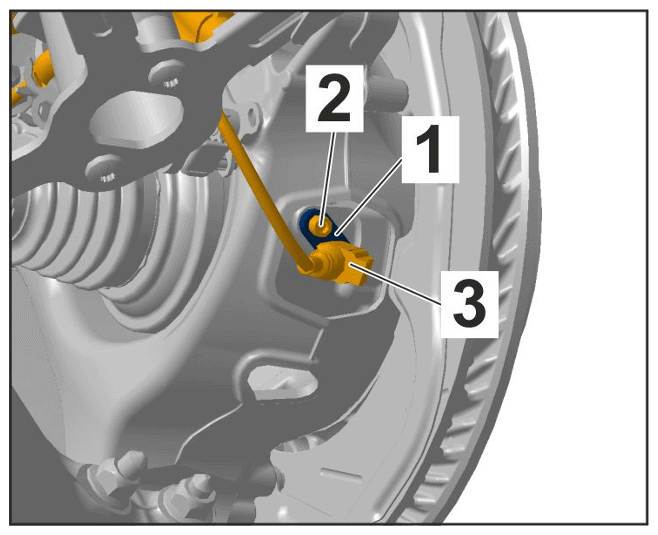

    G15856837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear speed sensor

    Information

    • Optitemp can be ordered using the Porsche Electronic Parts Information (PET).
    • The bore for the speed sensor mounting must be free of dirt.
    • Do not grease sensor tips!
    1. 2.1 Lightly grease ribbed area (seat in wheel bearing bore) with Optitemp (Optitemp LG2, 25 ml spraying can).
    2. 2.2 Tighten fastening screw -2-  > Tightening torque 8 Nm (6 ftlb.)
    3. 2.3 Plug in and lock electric connector -3-  .
