Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Servo motor for rear axle steering to rear axle housing	Hexagon-head bolt, M12x1.5 x100 (top)/M12 x 1.5x75 (bottom); observe tightening sequence!/Always replace screws following removal!	Initial tightening	70 Nm (52 ftlb.)

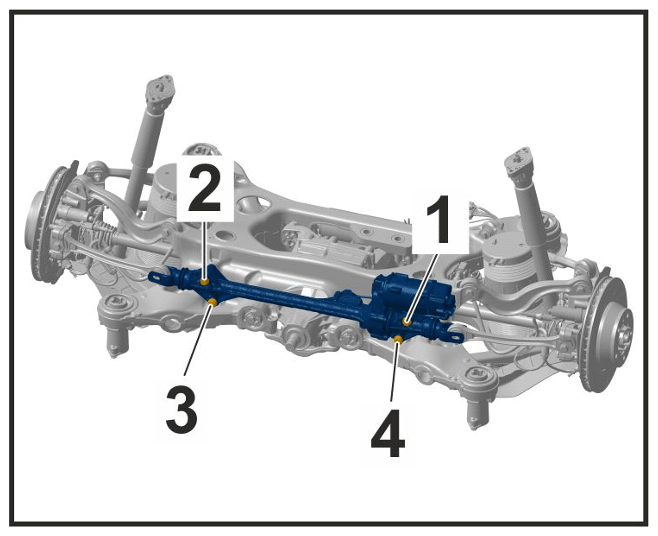

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for servo motor for rear axle steering
Servo motor for rear axle steering to rear axle housing	Hexagon-head bolt, M12x1.5 x100 (top)/M12 x 1.5x75 (bottom); observe tightening sequence!/Always replace screws following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for servo motor for rear axle steering
Tie rod to rear axle housing/servo motor for rear axle steering (toe eccentric adjuster)	Eccentric screw, M12x1.5 with eccentric washer and hexagon nut	Tightening torque	100 Nm (74 ftlb.)
