Add-On Parts For Cooling System - Phev

WARNING: This page is about a different variant/trim than selected.

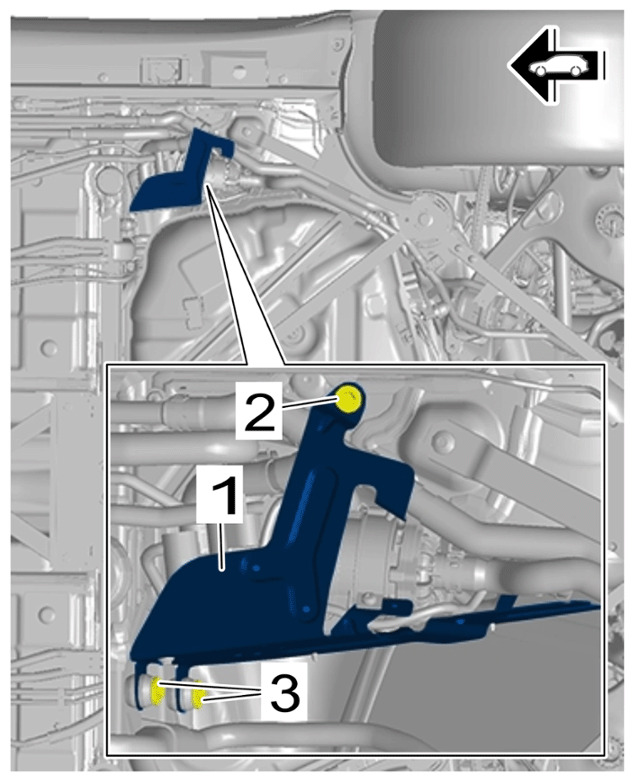

Fig 1: Holder Components Location With Torque Specification (Chiller)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder (chiller)

2	Nut > Tightening torque 6 Nm (4.5 ftlb.)
3	Screws > Tightening torque 8 Nm (6 ftlb.)

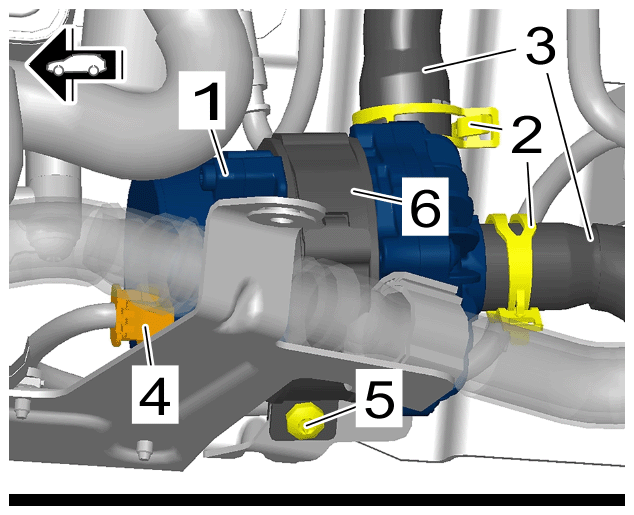

Fig 2: Additional Coolant Pump For Low-Temperature System (P1) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump for low-temperature system (P1)

5	Screw > Tightening torque 8 Nm (6 ftlb.)

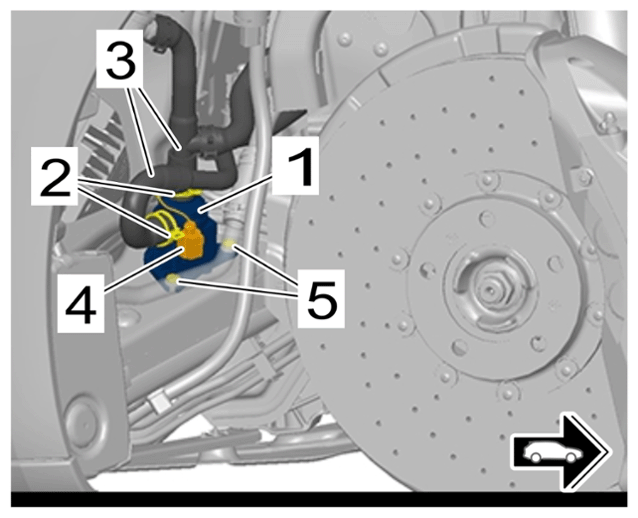

Fig 3: Additional Coolant Pump For High-Temperature System (P5) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump for high-temperature system (P5)

5	Screws > Tightening torque 8 Nm (6 ftlb.)

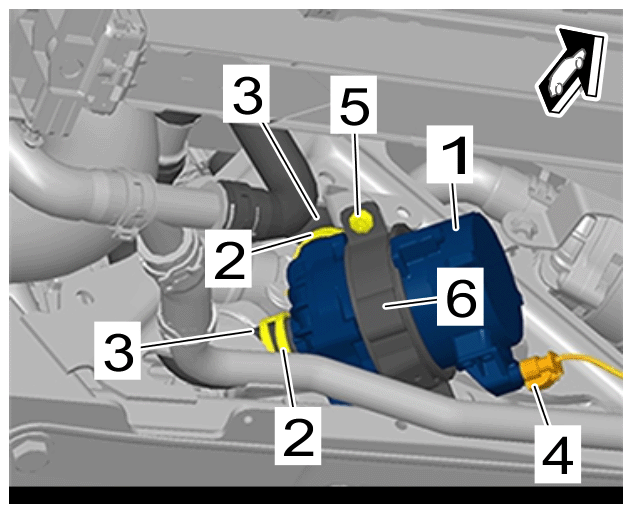

Fig 4: Additional Coolant Pump For Low-Temperature System (P2) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump for low-temperature system (P2)

5	Screw > Tightening torque 8 Nm (6 ftlb.)

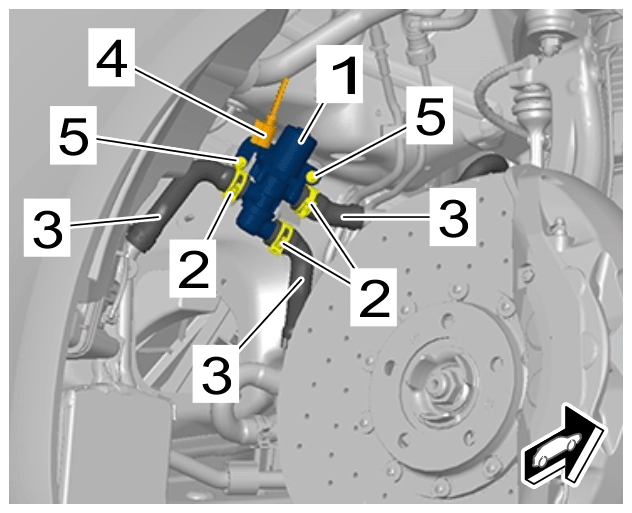

Fig 5: Change-Over Valve For High-Temperature System (UVW3) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for high-temperature system (UVW3)

5	Screws > Tightening torque 8 Nm (6 ftlb.)

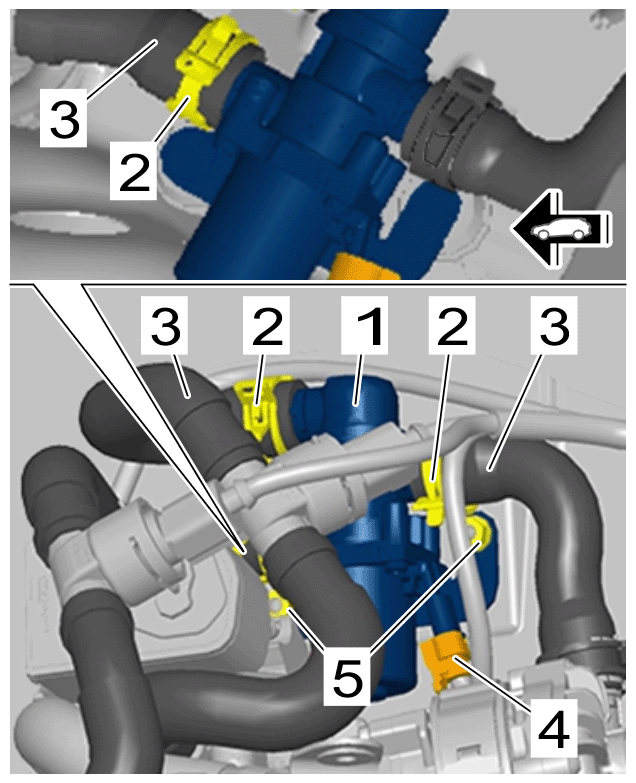

Fig 6: Change-Over Valve For Low-Temperature System (UVW1) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for low-temperature system (UVW1)

5	Nuts > Tightening torque 8 Nm (6 ftlb.)

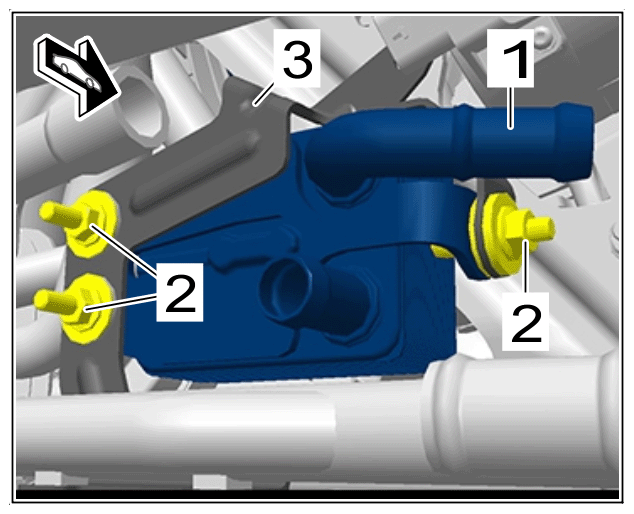

Fig 7: Heat Exchanger For High-Temperature And Low-Temperature System Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat exchanger for high-temperature and low-temperature system

2	Nuts > Tightening torque 8 Nm (6 ftlb.)

Location	Description	Type	Basic value	Tolerance

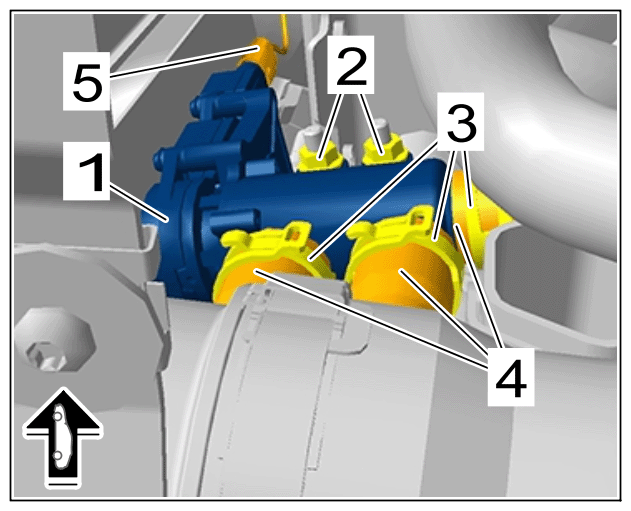

Directional-control valve for high-temperature circuit (WMV1) on front axle	Nuts/Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Directional-control valve for high-temperature circuit
