Oil Pan And Oil Guide Housing
WARNING: This page is about a different variant/trim than selected.

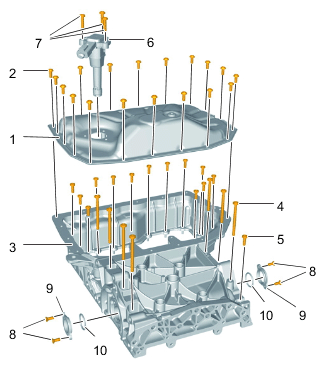

Oil pan and oil guide housing - V8 Turbo
| 1 | Oil pan/replace if damaged |
| 2 | Screws, M6 x 16/observe tightening sequence! > Tightening torque 9 Nm (6.5 ftlb.) |
| 3 | Oil guide housing |
| 4 | Screws, M6 x 80/observe tightening sequence! > Tightening torque 9 Nm (6.5 ftlb.) Screws, M6 x 80 > Tightening torque 9 Nm (6.5 ftlb.) |
| 5 | Screws, M6 x 20/observe tightening sequence! > Tightening torque 9 Nm (6.5 ftlb.) > Tightening torque 9 Nm (6.5 ftlb.) |
| 6 | Oil level sensor |
| 7 | Screws, M6 x 25 > Tightening torque 9 Nm (6.5 ftlb.) |
| 8 | Screws, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.) |
| 9 | Cover |
| 10 | O-ring/replace |
| not shown | Screw plug on oil pan/replace sealing ring > Tightening torque 30 Nm (22 ftlb.) |
