Removing Knock Sensor
WARNING: This page is about a different variant/trim than selected.

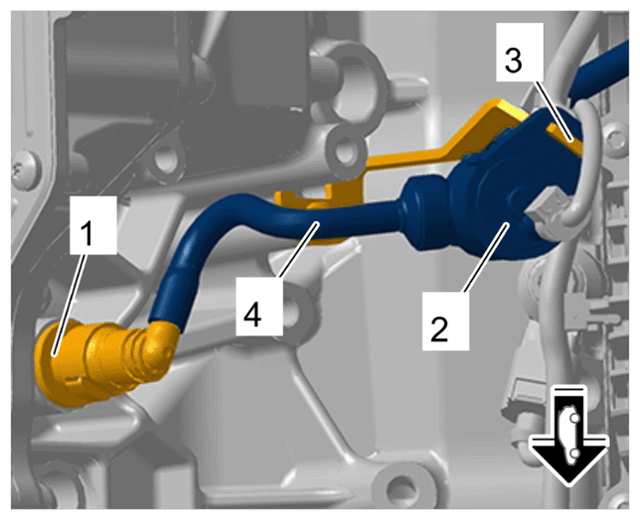

- Only for removing front knock sensor on cylinder bank 1:
Disconnect ventilation line -4-
.
- 1.1 Release and disconnect quick connector on ventilation line -1-
.
- 1.2 Pull solenoid valve -2-
out of the holder -3-
and move it and the ventilation line -4-
aside as far as required so that the knock sensor is accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Ventilation line

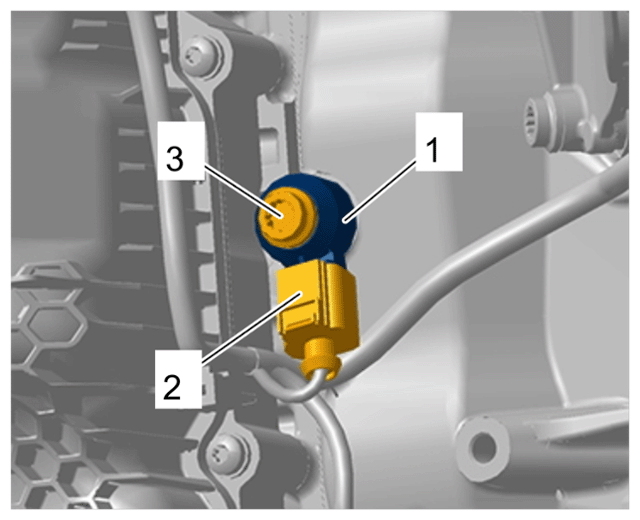

- Remove knock sensor -1-
.
- 2.1 Release and disconnect electric plug connection for knock sensor -2-
.
- 2.2 Unscrew screw on knock sensor -3-
.
- 2.3 Remove knock sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Knock sensor
