Removing Ignition Coils For Cylinders 1 To 4

Information

Poorly accessible electrical connectors (e.g., on fuel injectors) can be released with the > 3438 - hook  .

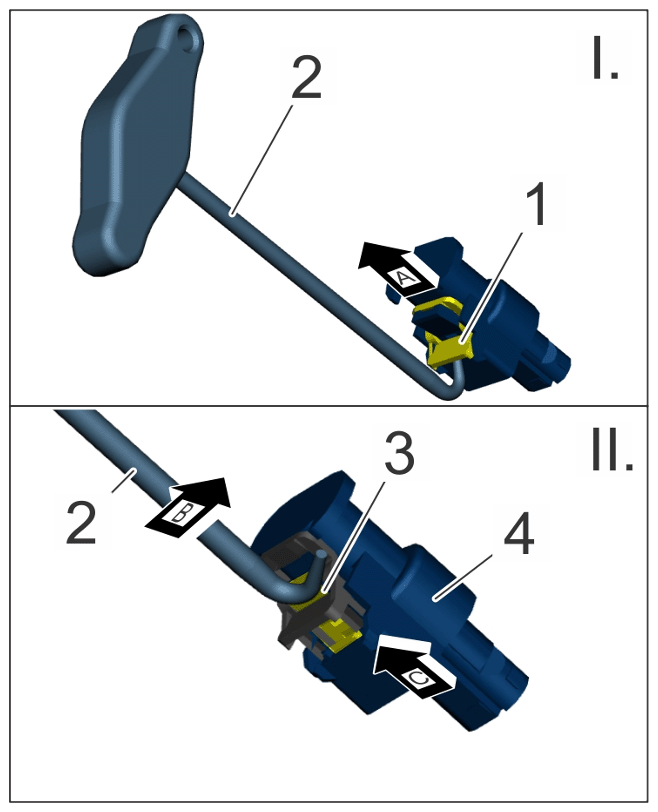

-I.-  Pull out the fuse -1-  with the > 3438 - hook-2-Arrow A-  .

-II.-  Actuate the locking mechanism -3-  with the > 3438 - hook-2-Arrow B-  and pull out electric plug -4-  at the same time -Arrow C-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using special tool VAG 3438

1. Expose the cable duct.

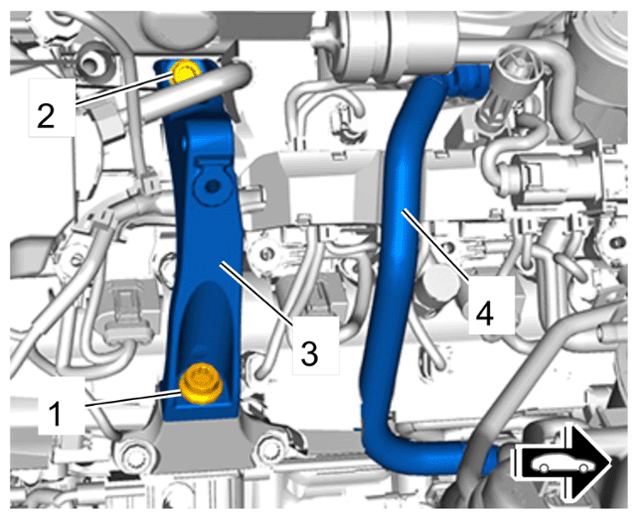

   1. 1.1 Unscrew screws -1 and 2-  , loosen bracket for torque support -3-  and secure it at a suitable position with a tie-wrap.
   2. 1.2 Release vent line -4-  , disconnect it and wedge it behind the aluminum strut.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bracket for torque support and vent line

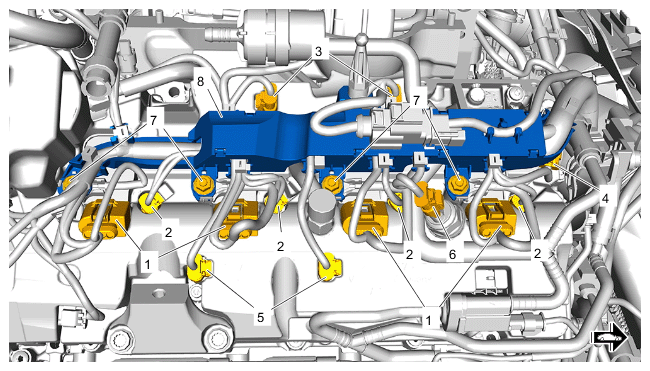

2. Detach cable duct.
   1. 2.1 Release and disconnect cable plugs -1-  for ignition coils for cylinders 1 to 4.
   2. 2.2 Release and disconnect cable plugs -2-  for fuel injectors for cylinders 1 to 4.
   3. 2.3 Release and disconnect cable plug -3-  for valve lift on outlet camshaft.
   4. 2.4 Release and disconnect cable plug -4-  on hall sender for outlet camshaft.
   5. 2.5 Release and disconnect cable plug -5-  for valve lift on intake camshaft.
   6. 2.6 Release and disconnect cable plug -6-  on fuel pressure sensor.
   7. 2.7 Loosen and remove nuts -7-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Overview of cable duct

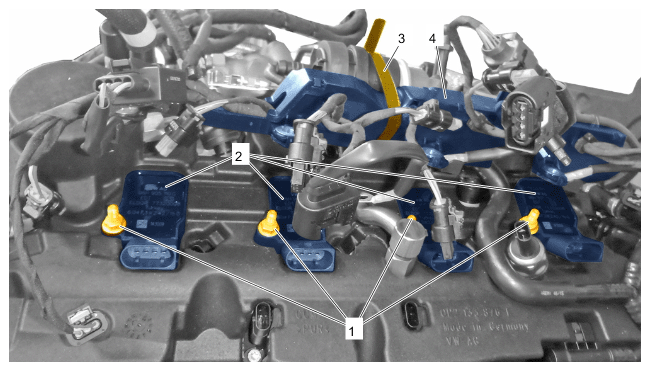

3. Remove ignition coils for cylinders 1 to 4.
   1. 3.1 Loosen and unscrew screws -1-  on ignition coils -2-  .
   2. 3.2 Tie up cable duct -4-  with a tie-wrap -3-  .
   3. 3.3 Remove ignition coils -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing ignition coils
