Installing Ignition Coils For Cylinders 5 To 8

WARNING: This page is about a different variant/trim than selected.

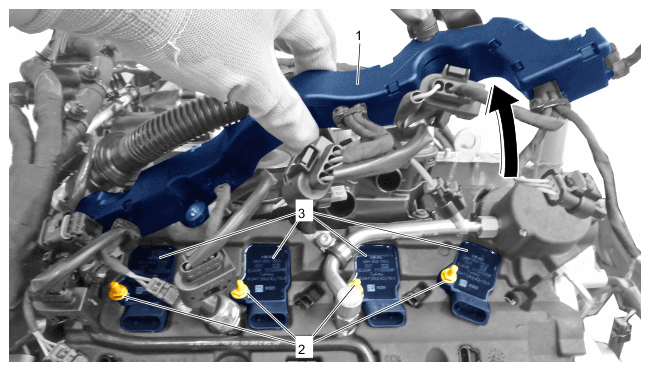

Install ignition coils for cylinders 5 to 8.

1.1 Insert ignition coils -3- and check that they are seated correctly.
1.2 Fit and tighten screws -2- on ignition coils.
> Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)

1.3 Move cable duct -1- into installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing ignition coils

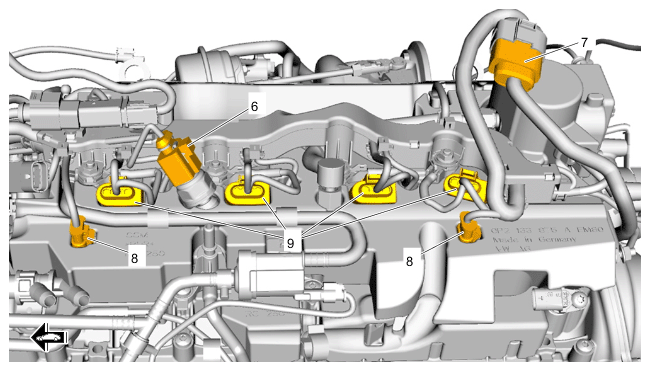

Secure cable duct -5- .

2.1 Insert and lock cable plugs -6 to 9- .

2.1.1 Insert and lock cable plug -6- on the fuel pressure sensor.
2.1.2 Connect cable plug -7- and insert it into the bracket. Press cable clamp onto fuel line.
2.1.3 Insert and lock cable plug -8- for valve lift on intake camshaft.

2.1.4 Insert and lock cable plugs -9- for ignition coils on cylinders 5 to 8.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of cable duct, bottom

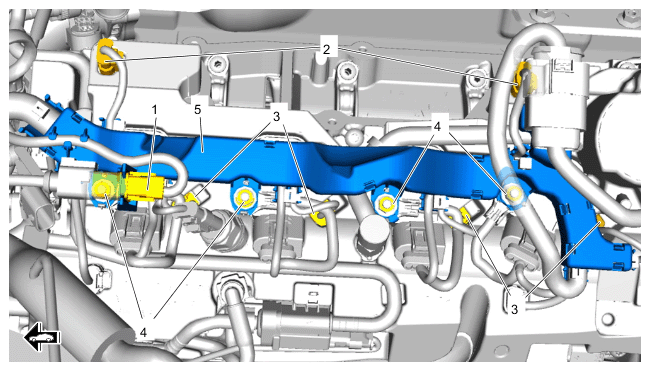

2.2 Insert and lock cable plugs -1 to 3- .
1. 2.2.1 Insert cable plug -1- into the bracket.
2. 2.2.2 Insert and lock cable plug -2- for valve lift on outlet camshaft.
3. 2.2.3 Insert and lock cable plugs -3- for fuel injectors on cylinders 5 to 8.

2.3 Tighten cable duct using nuts -4- .

> Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of cable duct, top

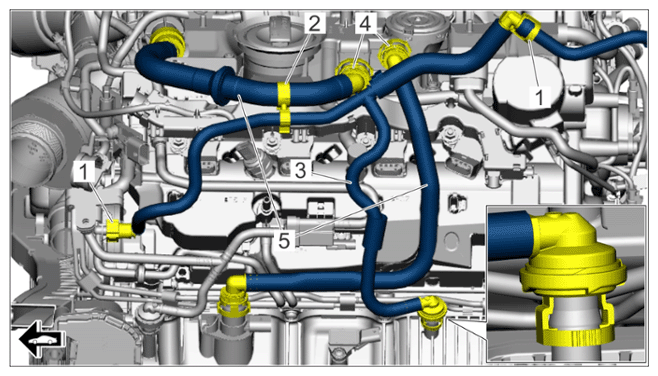

Connect vacuum line -3- and vent line -5- .

3.1 Turn vacuum line -3- to its original position and connect it to the vacuum pump and brake booster connection -1- .

3.2 Connect vent lines -5- on oil separator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line and vacuum line
