Component Overview

WARNING: This page is about a different variant/trim than selected.

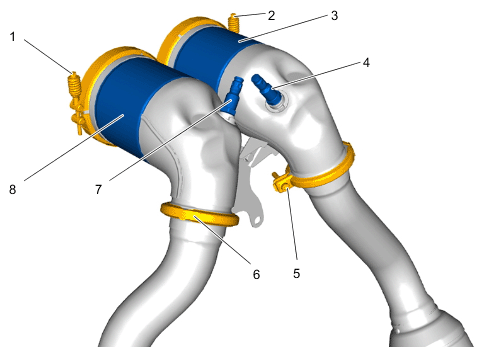

Fig 1: Primary Catalytic Converter Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primary catalytic converter

1	V-band clamp on catalytic converter, bank 2
2	V-band clamp on catalytic converter, bank 1
3	Primary catalytic converter, bank 1
4	Oxygen sensor downstream of primary catalytic converter, bank 1
5	V-band clamp securing primary catalytic converter to catalytic converter, bank 1
6	V-band clamp securing primary catalytic converter to catalytic converter, bank 2
7	Oxygen sensor downstream of primary catalytic converter, bank 2
8	Primary catalytic converter, bank 2
