Removing Exhaust Flap Actuator
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
- Remove exhaust flap actuator.

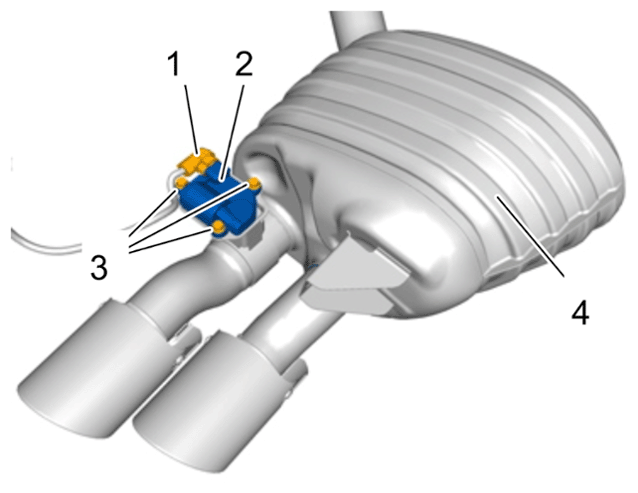

- 1.1 Release and disconnect cable plug -1- from exhaust flap actuator -2- .
- 1.2 Unscrew screws -3- on exhaust flap actuator -2- .
- 1.3 Remove exhaust flap actuator -2- from rear silencer -4- .
Exhaust flap actuator
