Subsequent Work

WARNING: This page is about a different variant/trim than selected.

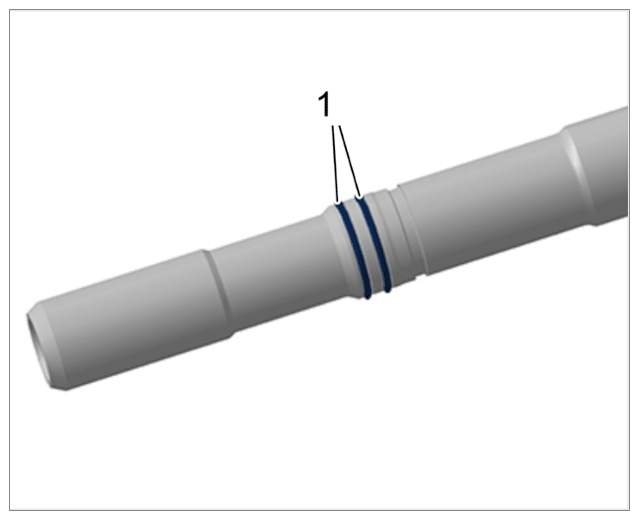

Fit new O-rings -1- on the connecting shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

O-rings on connecting shaft

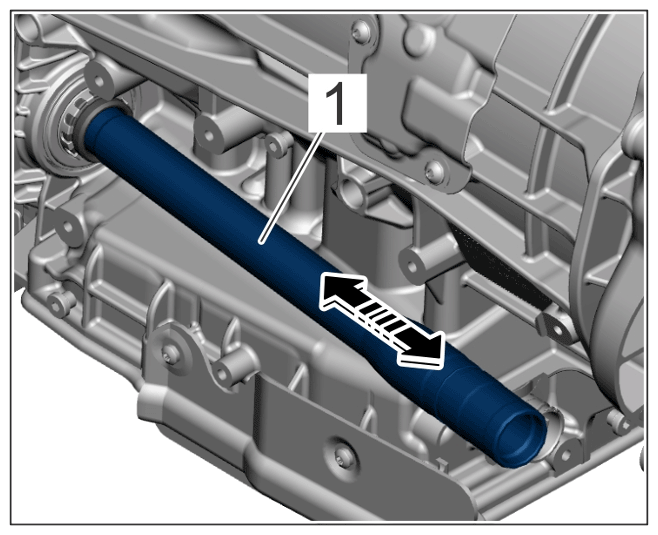

Replacing connecting shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting shaft

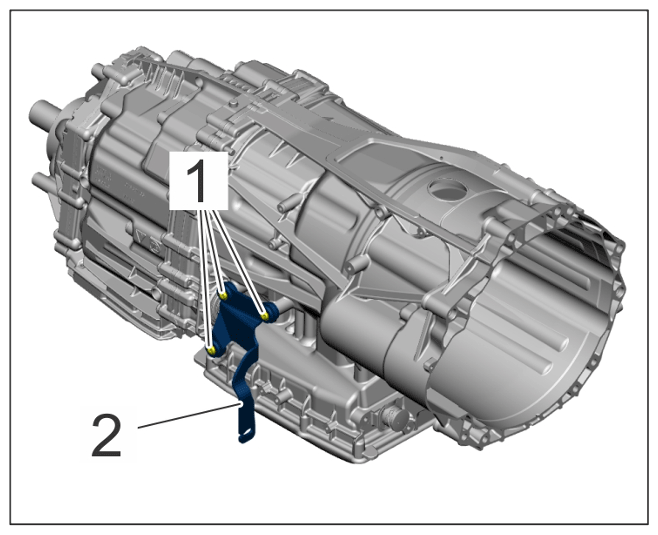

Install catalytic converter -2- .
1. 3.1 Tighten screws -1- to > Tightening torque 23 Nm (17 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter holder
If the double clutch transmission is mounted:

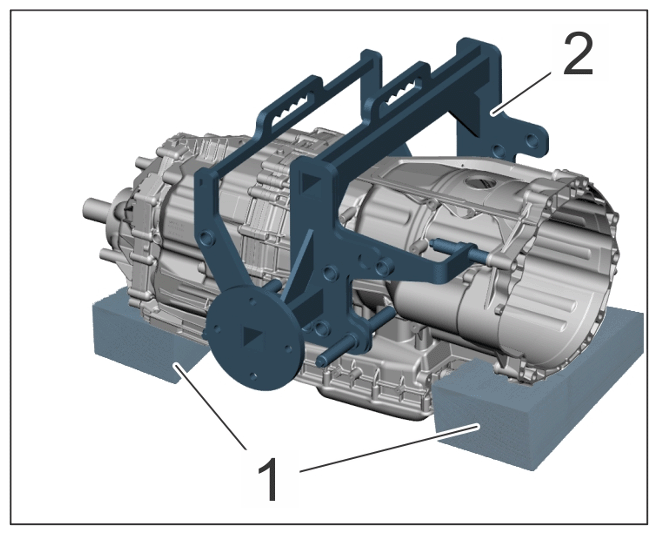

1. 4.1 Install > 9932 - gear support .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission on wooden blocks
Install or mount double clutch transmission.
> WM, 373419 REMOVING AND INSTALLING PORSCHE DOPPELKUPPLUNG (PDK) (V8 BITURBO)

> 373427 REMOVING AND MOUNTING DOUBLE-CLUTCH TRANSMISSION (V8 BITURBO)
Checking and topping up ATF
> 370235 CHECKING AND TOPPING UP ATF
