Removing Sealing Ring For Front Output Shaft

1. Have a suitable container ready to catch escaping ATF.
2. Carefully remove cover ring -1-  at the transmission output using a screwdriver.

   Replace cover ring during installation.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover ring

3. Variant 1:  Remove sealing ring -1-  with the > VAS 6965 - puller set  over the disassembly holes -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

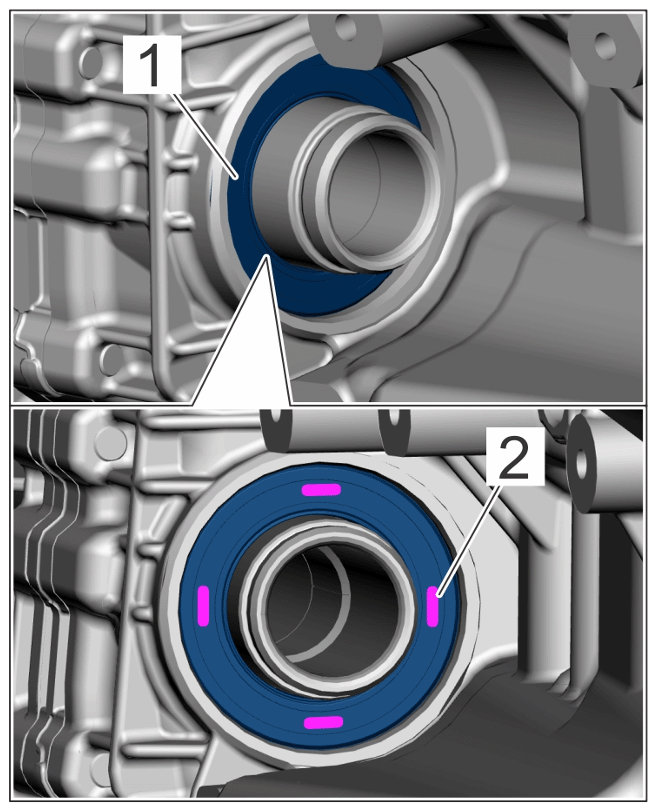

   Disassembly holes on sealing ring

4. Variant 2:  Carefully remove sealing ring -1-  using > T20143 - extractor hook-2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

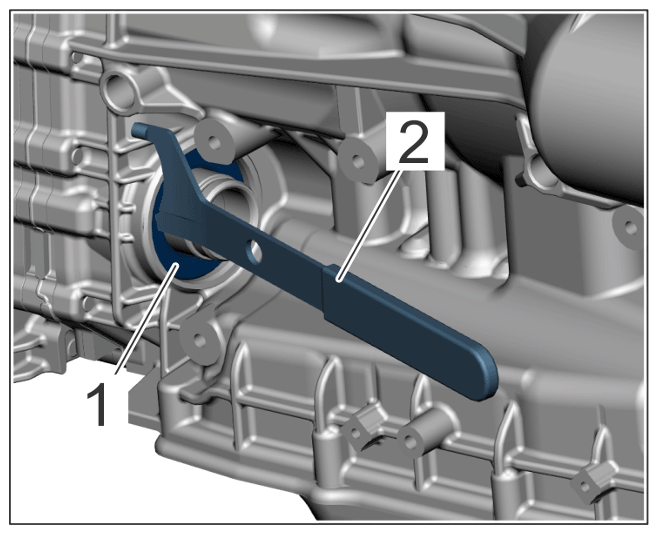

Using puller hook T20143
