Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove or remove double clutch transmission.

    > WM, 373419 REMOVING AND INSTALLING PORSCHE DOPPELKUPPLUNG (PDK) (V8 BITURBO)

    > 373427 REMOVING AND MOUNTING DOUBLE-CLUTCH TRANSMISSION (V8 BITURBO)

  2. If the engine was removed and the double clutch transmission removed:

    Information

    Porsche Doppelkupplung must not be placed on oil pan.

    1. 2.1 Place double clutch transmission with > 9932 - gear support-2-  on suitable pieces of wood -1-  .
    2. 2.2 Remove > 9932 - gear support  .
    G15889345Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission on wooden blocks

  3. Remove catalytic converter -2-  .
    1. 3.1 Unscrew screws -1-  and remove catalytic converter holder -2-  .

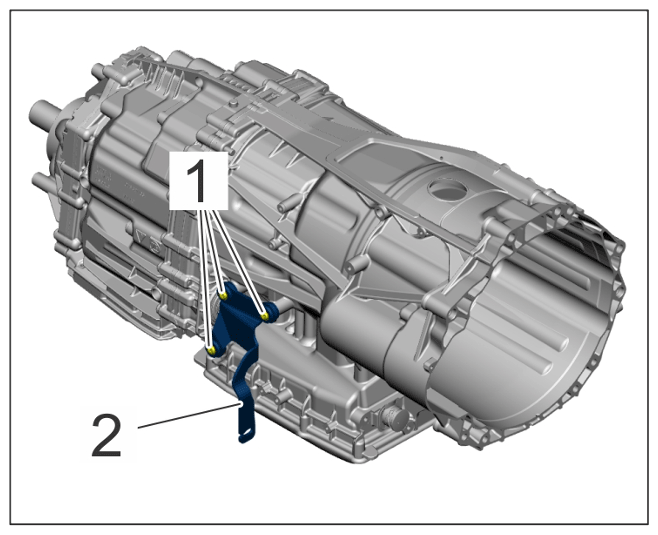

    G15889346Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Catalytic converter holder

  4. Pull off connecting shaft -1-  .

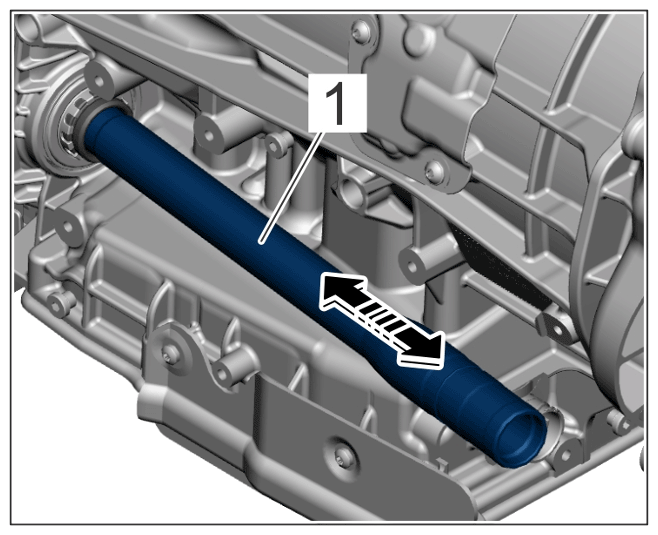

G15889347Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting shaft
