Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove or remove double-clutch transmission.

    > WM, 373419 REMOVING AND INSTALLING PORSCHE DOPPELKUPPLUNG (PDK) (V8 BITURBO)

    > WM, 373427 REMOVING AND MOUNTING DOUBLE-CLUTCH TRANSMISSION (V8 BITURBO)

  2. If the engine was removed and the double-clutch transmission removed:

Information

Porsche Doppelkupplung must not be placed on oil pan.

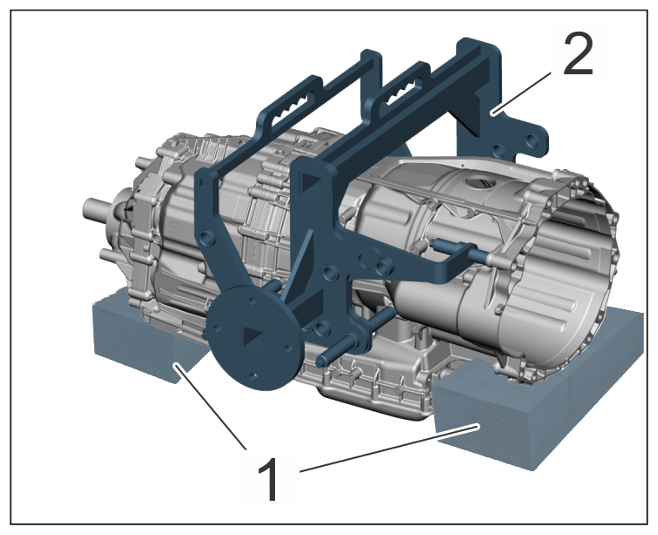

  1. 2.1 Place double-clutch transmission with > 9932 - gear support-2-  on suitable pieces of wood -1-  .
G15889335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission on wooden blocks
