Removing ATF Cooling Line (Front Section)

WARNING: This page is about a different variant/trim than selected.
  1. Place a drip pan underneath to collect emerging oil.

    Information

    • Close off connections and lines using suitable stoppers or caps.
  2. Remove ATF cooling line (front section) -1-  on the ATF cooler and unclip holder.
    1. 2.1 Unscrew screw -2-  and disconnect ATF cooling line (front section) -1-  from the ATF cooler.
    2. 2.2 Unclip clips -3-  on ATF cooling line (front section) -1-  and remove holder.

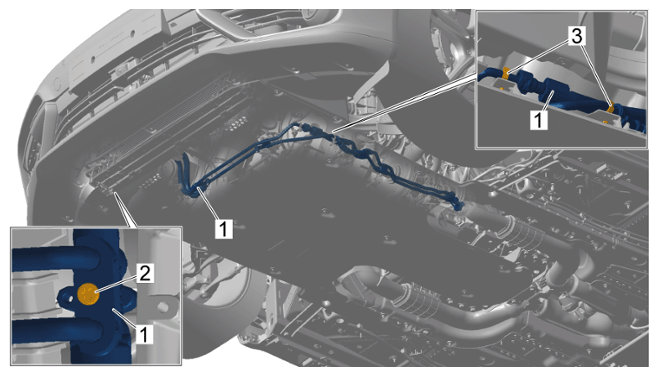

    G15889330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting ATF cooling line (front section) on ATF cooler

    Information

    • Close off connections and lines using suitable stoppers or caps.
  3. Remove ATF cooling line (front section) -1-  .
    1. 3.1 Release clamps -2-  (-arrows A-  ) and pull them off -arrows B-  .
    2. 3.2 Disconnect ATF cooling line (front section) -1-  from ATF cooling line (rear section) -3-  .
    3. 3.3 Guide out ATF cooling line (front section) -1-  .

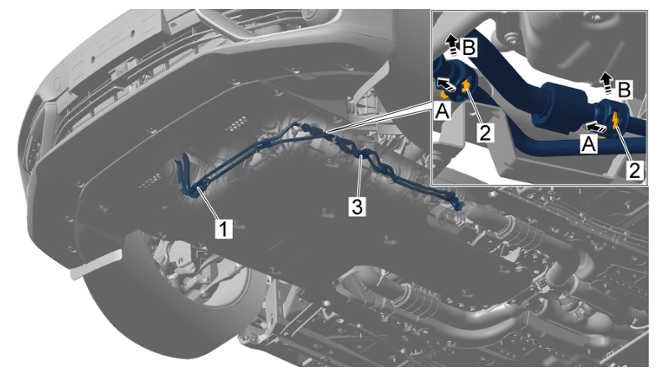

    G15889331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing ATF cooling line (front section)
