Removing Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
NOTE:
Dirt and contamination
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.
Information
- The sealing ring on the pressure sensor is pressed on.
- After removing a pressure sensor, the sensor must be replaced.
Information
- The pressure sensors for clutch 1 and 2 (K1 and K2) are identical parts.
- The pressure sensors can be diagnosed using a fault code and this is used to detect the defective sensor in the PIWIS Tester.

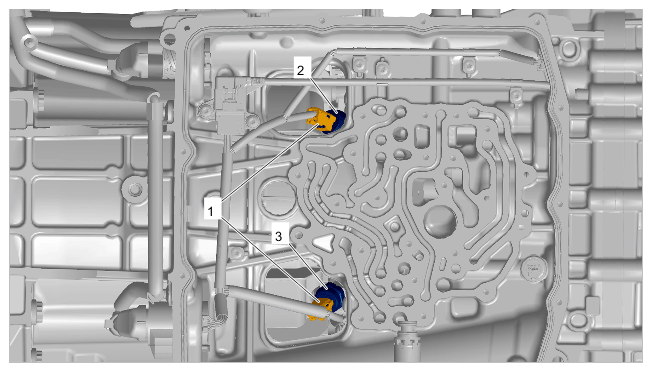

Installation overview of clutch pressure sensors:
Installation overview of clutch pressure sensors
| 1 | Cable plugs |
| 2 | Pressure sensor for clutch 1 (K1) |
| 3 | Pressure sensor for clutch 2 (K2) |
- Release and pull off cable plug -1-
.

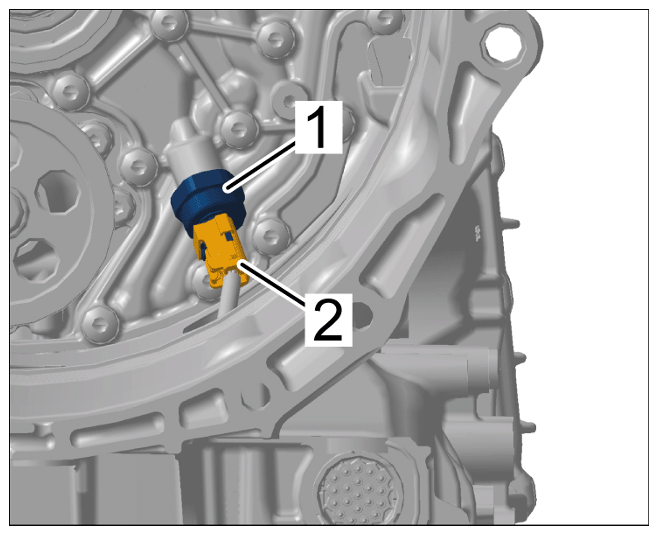

Pressure sensor with cable plug (view from front without converter)
- Remove pressure sensor using > 9911 - socket-wrench insert .
- 2.1 Loosen pressure sensor -1- by turning it approx. 90 degrees anti-clockwise using socket-wrench insert -2- . Then remove tool.
- 2.2 Unscrew the pressure sensor by hand.
Pressure sensor with special tool
View of > 9911 - socket-wrench insert fitted on the pressure sensor.

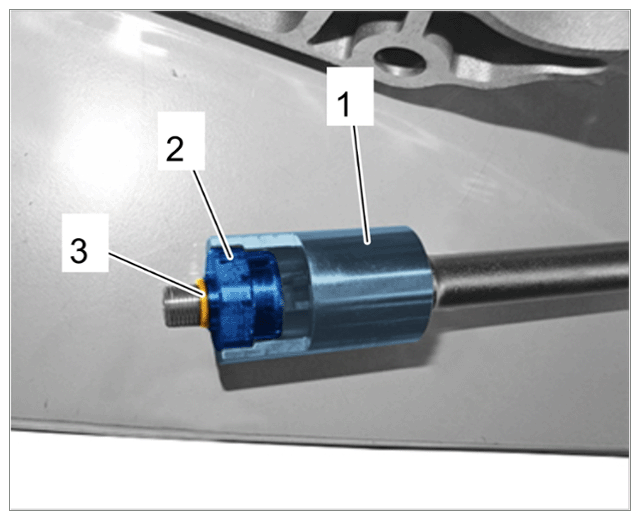

Pressure sensor in special tool 9911
| 1 | Socket-wrench insert 9911 |
| 2 | Pressure sensor |
| 3 | Sealing ring pressed on |
