Removing Fuel Line (Right High-Pressure Pump To Rail)

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fuel and hot fuel lines.

Information

The rules relating to cleanliness and instructions for working on the fuel system must always be observed before and during the work.

Information

Check fuel line for damage following removal and replace it if necessary.

Expose the cable duct.
1. 1.1 Unscrew screws -1 and 2- , loosen bracket for torque support -3- and secure it at a suitable position with a tie-wrap.
2. 1.2 Release vent line -4- , disconnect it and wedge it behind the aluminium strut.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

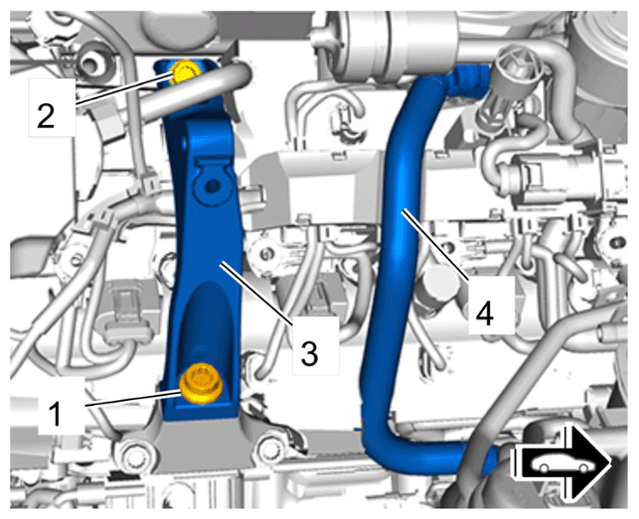

Bracket for torque support and vent line

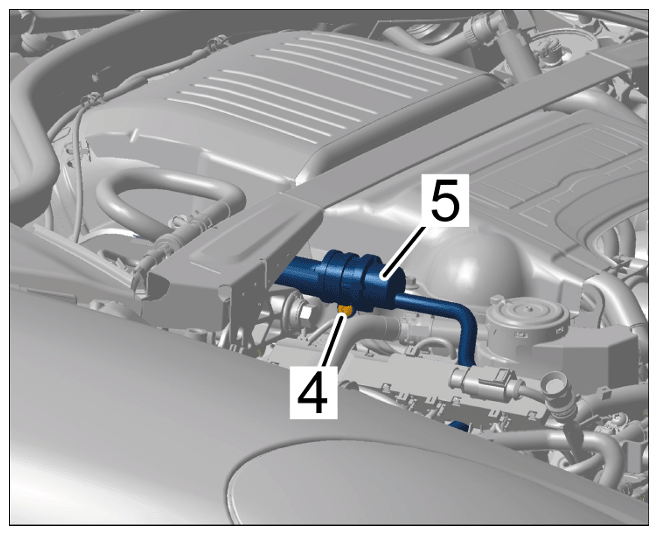

Unscrew screw -4- and set fuel line -5- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line
Loosen cable duct.
1. 3.1 Release and disconnect electric plug connections -1- for ignition coils for cylinders 1 to 4.
2. 3.2 Release and disconnect electric plug connections -2- for fuel injectors for cylinders 1 to 4.
3. 3.3 Release and disconnect electric plug connection -3- for valve lift on exhaust camshaft.
4. 3.4 Release and disconnect electric plug connections -4- for hall sender for outlet camshaft.
5. 3.5 Release and disconnect electric plug connections -5- for valve lift on intake camshaft.
6. 3.6 Release and disconnect electric plug connection -6- on fuel pressure sensor.
7. 3.7 Loosen nuts -7- and tie cable duct -8- up using a tie-wrap.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

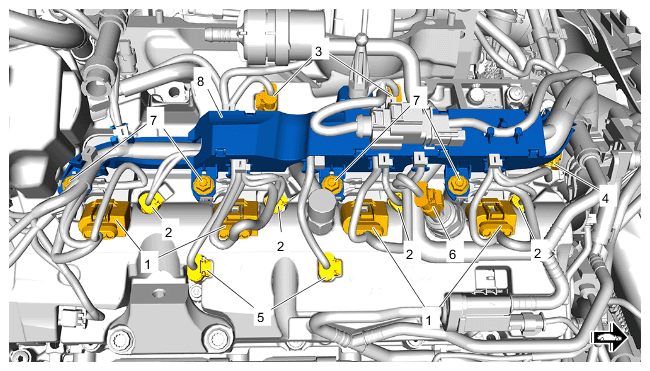

Overview of cable duct

Information
- Open connections and lines must be closed off using suitable stoppers or caps.

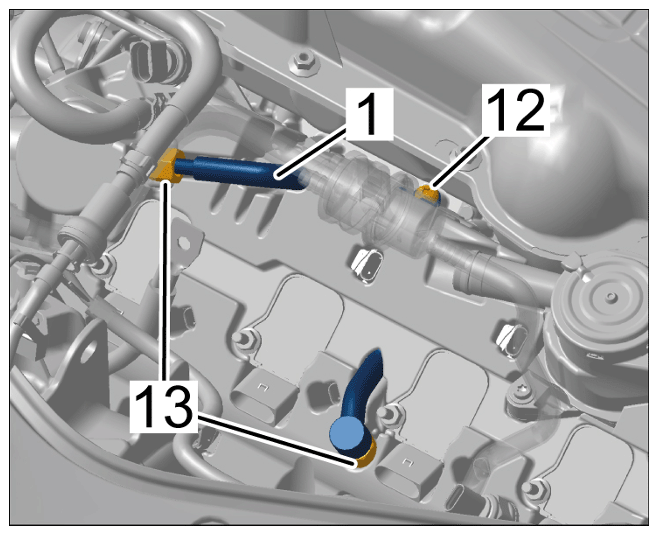

Remove fuel line -1- .
1. 4.1 Unscrew screw -12- and screw off union nuts -13- .
2. 4.2 Lift sound absorber and guide out fuel line -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line
