Removing Left Throttle Housing

Information

The following steps are shown on the V6 biturbo as an example, but are also relevant for the V8 biturbo.

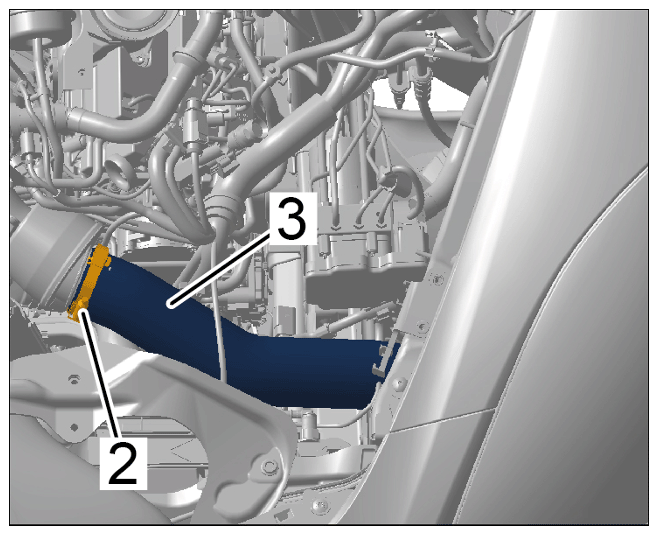

1. Open clamp -2-  , pull off charge air hose -3-  and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Setting charge air hose aside

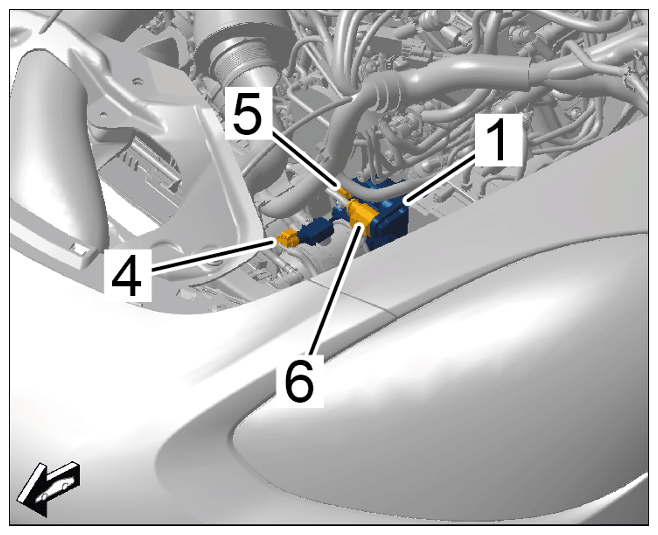

2. Unclip line bracket -5-  and release and disconnect electric plug connection -4-  and -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connections

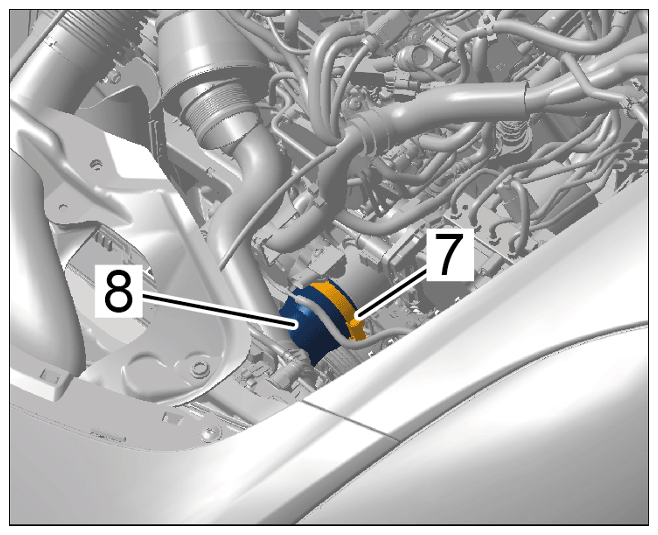

3. Open clamp -7-  , pull charge air hose -8-  off the pressure pipe on the left throttle housing and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Setting lower charge air hose aside

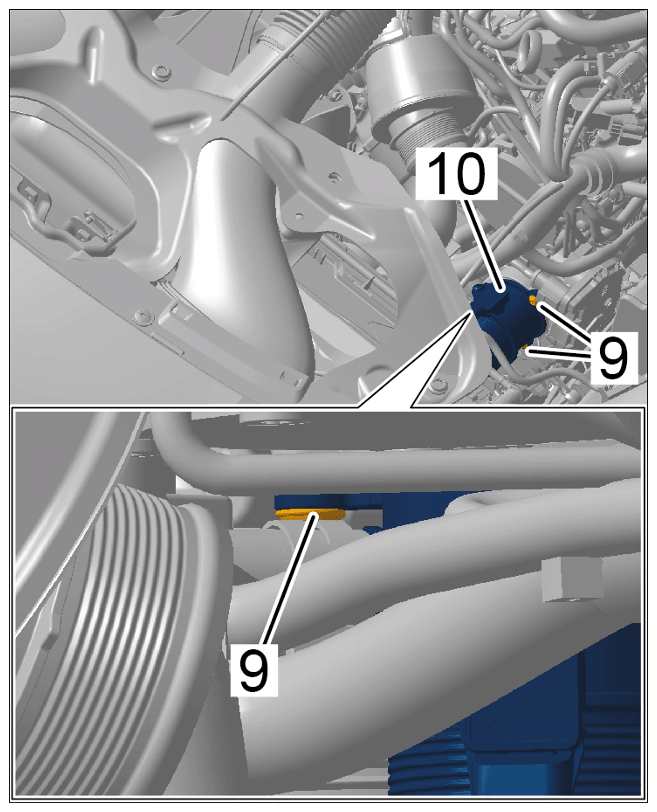

4. Unscrew screws -9-  and remove pressure pipe -10-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing connection piece

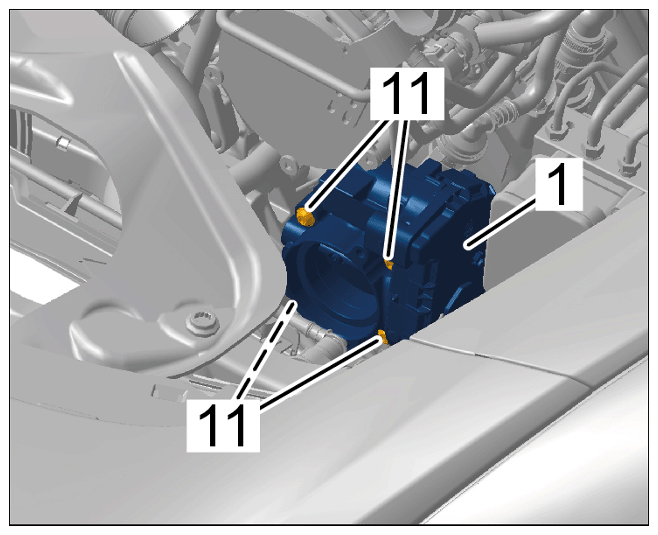

5. Unscrew screws -11-  and remove left throttle housing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing left throttle valve
